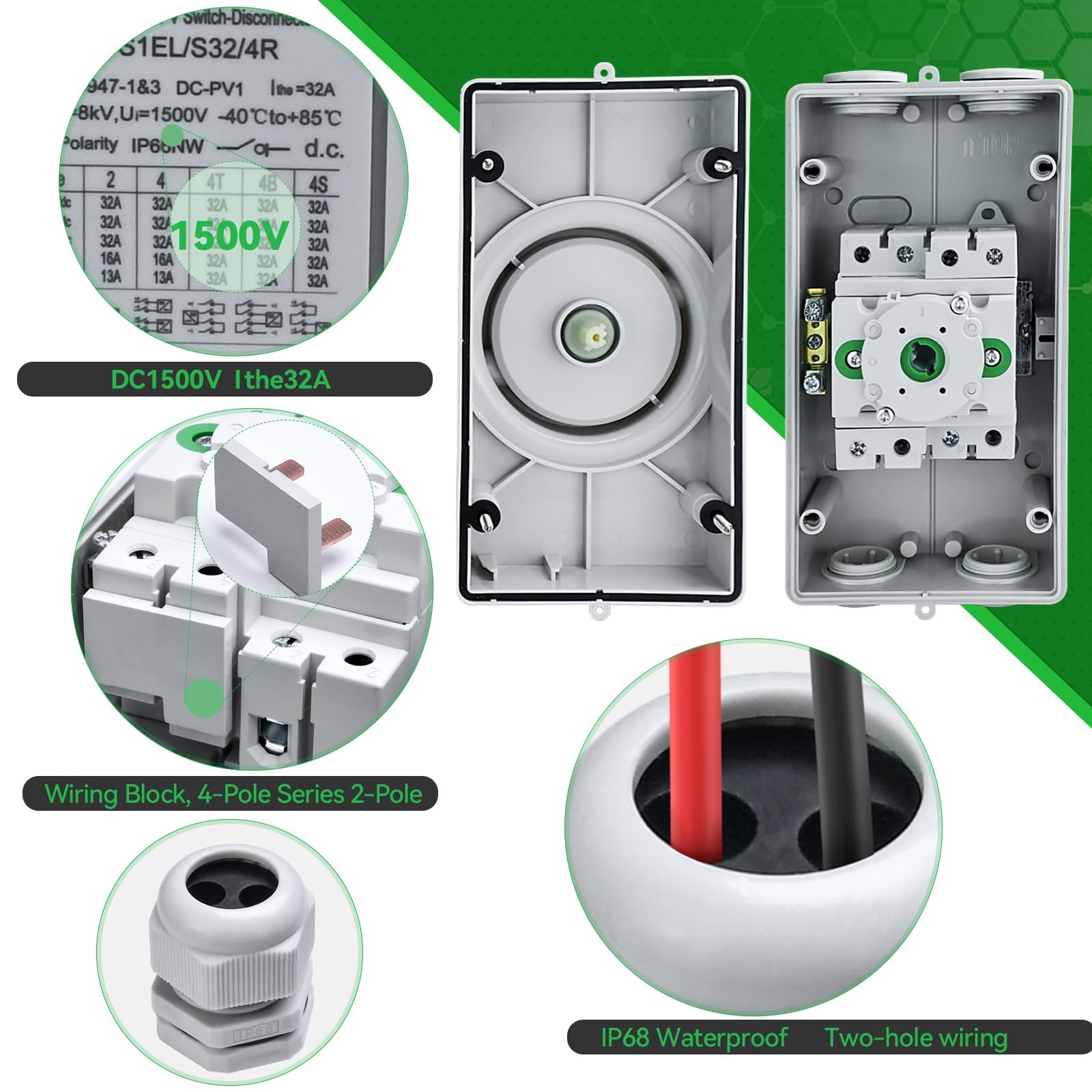

ZJWZJH Solar Disconnect Switch 4-Pole DC 1500V 32A Isolator Solar Switch with…
USD 68.74 USD

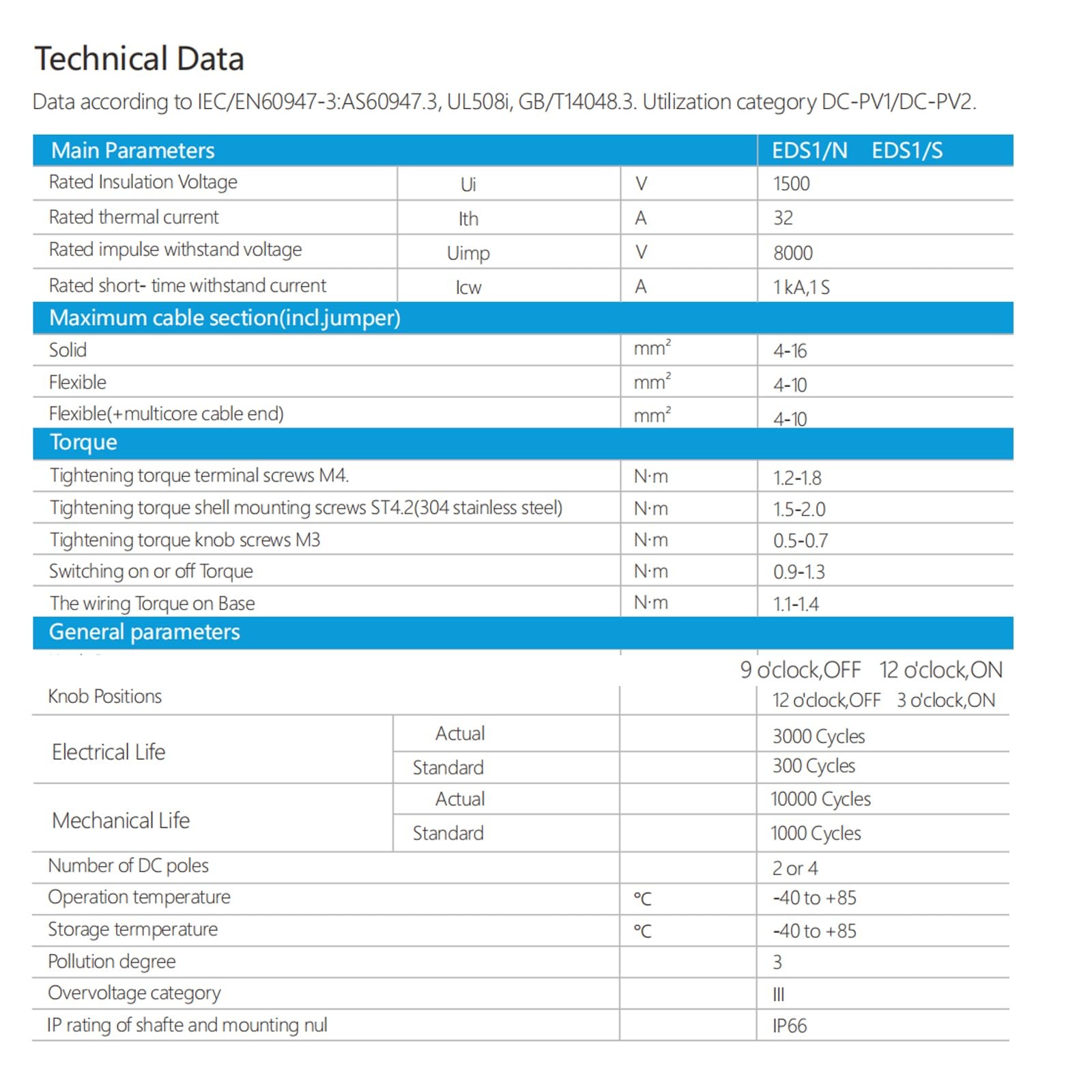

Specifications
| Switch Type | Rotary |
| Actuator Type | Rotary |
| Contact Material | Silver |
| Contact Type | 4 Pole |
| Specification Met | Tuv, Cb, Ce, Rcm |
| Connector Type | Screw |
| Brand | Zjwzjh |
| Control Method | Touch |
| Lower Temperature Rating | -40.0 |
| Current Rating | 32.0 |
| Size | Black 4-Pole |
| Circuit Type | 4-Way |
| Part Number | Eds1-4R-K |
| Terminal Type | Screw |
| Color | Black 4 Pole |
| Controller Type | Solar Disconnect Switch |
| Model Number | Eds1-4R-K |
| Operation Mode | On-Off |
| International Protection Rating | Ip66 |
| Mounting Type | Panel Mount |
| Material | Plastic |
| Operating Voltage | 1500.0 |
| Upper Temperature Rating | 85.0 |
| Unit Count | 1.0 |
| Package Dimensions LxWxH | 10.71x5.2x4.49 Inches |
| Weight | 2.43 Pounds |
The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation.
