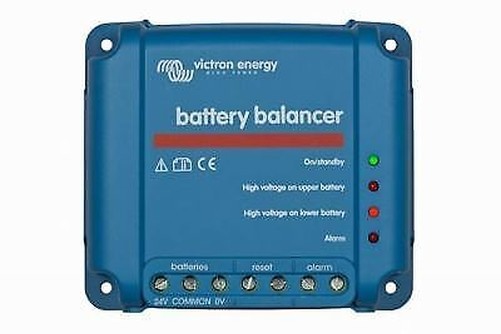

Victron Energy Deep cycle automatic leisure battery balancer BBA000100100; 2x12V
Specifications
| Turn Off Level (Volts) | 26.6V |
| Input Voltage Range (Per Battery) | up to 18V |
| Turn On Level (Volts) | 27.3 |
| Alarm Trigger Level | 200 mV |
| Inverter Technology | Battery-Based |
| Pliability | Rigid |
| Power Source | Solar |
| Recommended Environment | Indoor |
| Resistance Properties | Childproof |
| Unit Type | Unit |
| MPN | BBA000100100 |
| Operating Temperature | -30 to +50 |
| Manufacturer Part Number | BBA000100100 |
| Maximum Input Voltage | 11-20 V |
| Brand | Victron Energy |
| System Configuration | Off-Grid |
| Colour | BLUE |
| Voltage | 12 V |
| Features | Portable |
| Type | Battery Balancer |

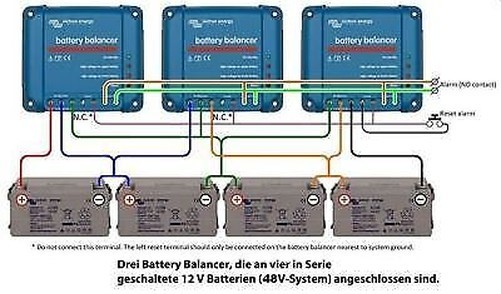

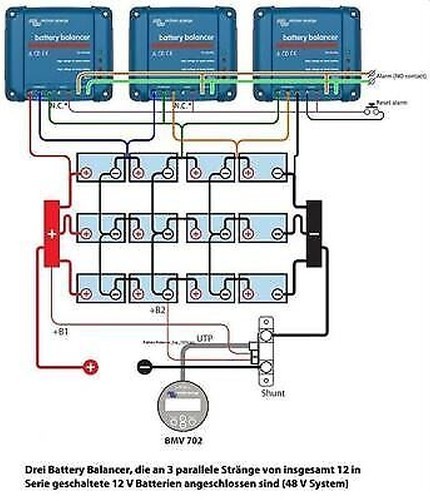

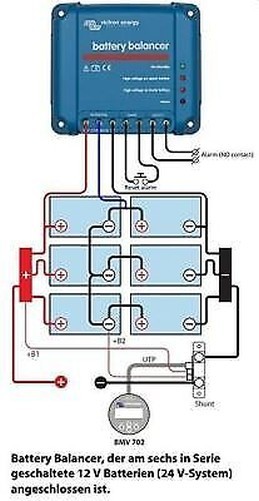

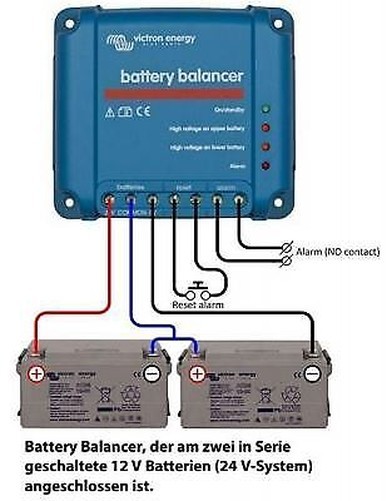

FeaturesSuitable for lead acid batteries onlyThe Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries.When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.If needed, several balancers can be paralleled.A 48V battery bank can be balanced with three Battery Balancers.Victron Battery Balancer:Input voltage range Up to 18V per battery, 36V t.
