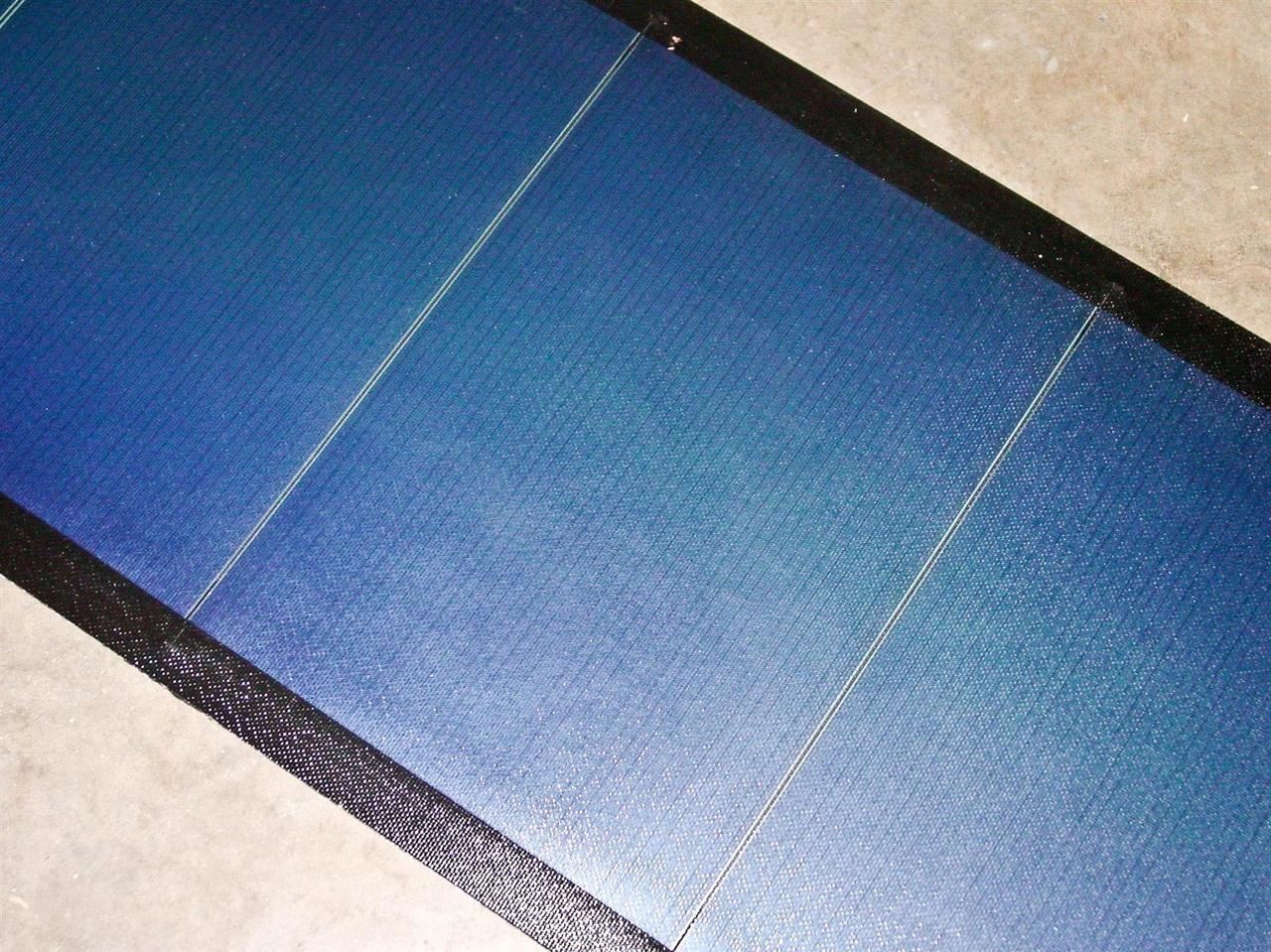

Uni-Solar PVL-136 136 Watt 24V Triple Junction Flexible Solar Panel w/ 4″ Wires
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Unisolar |
| Type | Solar Panel |
| Power Source | Solar |
| Features | All Daylight Conditions |
| System Configuration | Hybrid |
| Solar Technology | Amorphous (Thin-Film) |
| Application | Agriculture/Farming |
| Resistance Properties | Abrasion Resistant |
| Voltage | 24 V |
| Power | 101-150 W |
| Current Output | 10 A or Less |
| Model | PVL Series |
| Current Rating | 4.01-4.5 A |
| MPN | PVL-136B |
| Wattage | 100-199 W |
| Pliability | Flexible |
| Connector Type | 4" Wires |
| Recommended Environment | Outdoor |
| Color | Blue |
| Country/Region Of Manufacture | United States |
| Inverter Technology | Microinverter |
| Product Line | Powerbond |
| Item Length | 18 Feet |
| Wire Gauge | 14 AWG |
| UPC | Does Not Apply |

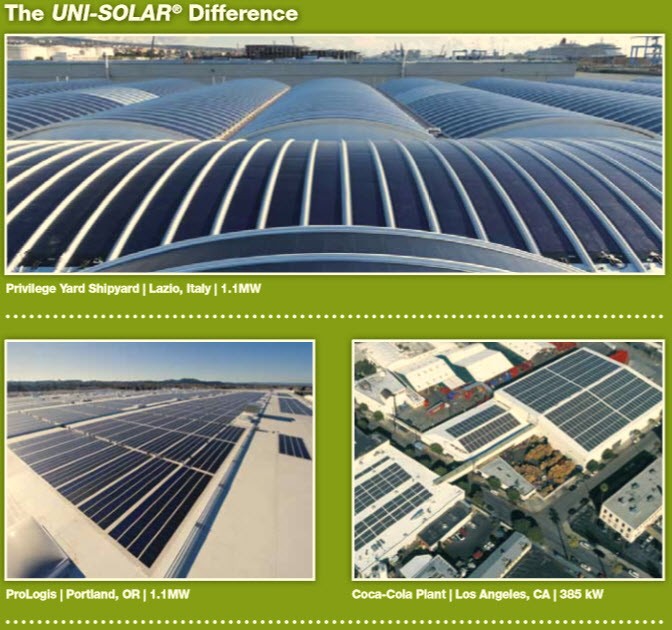

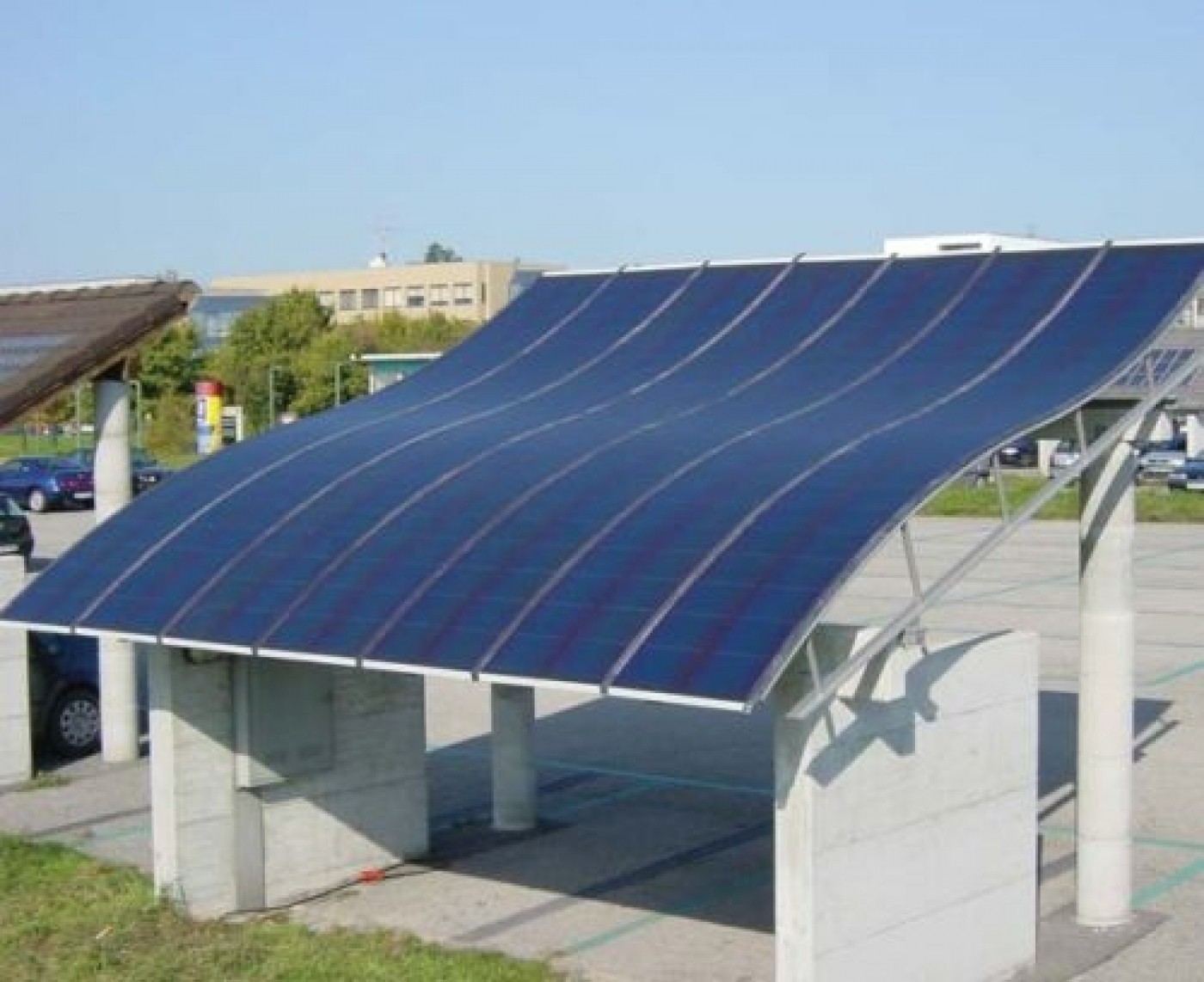

Uni-Solar PVL-136 136 Watt 24V Triple Junction Flexible Solar Panel w/ 4" Wires Uni-Solar PVL-136 136W 24-Volt Flexible Amorphous Solar Panel with 22 Triple Junction Cells and Bottom Facing 4" WIRES. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. The following are basic specs for individual solar panels Maximum Power (Pmax): 136 Watts Nominal Operating Voltage: 24 Volts Max Power Voltage (Vmpp): 33 Volts Max Power Current (Impp): 4.1 Amps Open Circuit Voltage (Voc): 46.2 Volts Short Circuit Current (Isc): 5.1 Amps Max System Voltage: 600 Volts Lightweight & Flexible Bypass Diodes at each cell connection Category 3 (130 MPH) Hurricane uplift resistant when installed in accordance with guidelines. Virtually Unbreakable (No Glass) Shadow & High Heat Tolerant Cells Per Module: 22 Frame Material: Frameless Connectors: None; 4" Wires on bottom of panel Bonding adhesive factory-installed on the back of the laminate Panel Weight: 16 Pounds Panel Dimensions:216" (18 Feet) x 15 3/8" Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples. UNISOLAR PVL-136 Solar Power Amorphous Flexible PV Panels - YouTube Video will open in a new window [isdntekvideo] Condition: New These brand new made in USA solar panels are packed and stored in the factory carton of 30 panels, but sold as singles here. The Unisolar manufacturing and distribution facility was liquidated in 2012 and these panels came direct from Unisolar. We do have various brochures and installation guides produced by Unisolar available we can offer if requested. Unisolar peel and stick flexible panels are no longer made and are getting more rare by the day.CLICK BELOW FOR MORE SOLAR OPTIONSShippingBest OffersReturns
