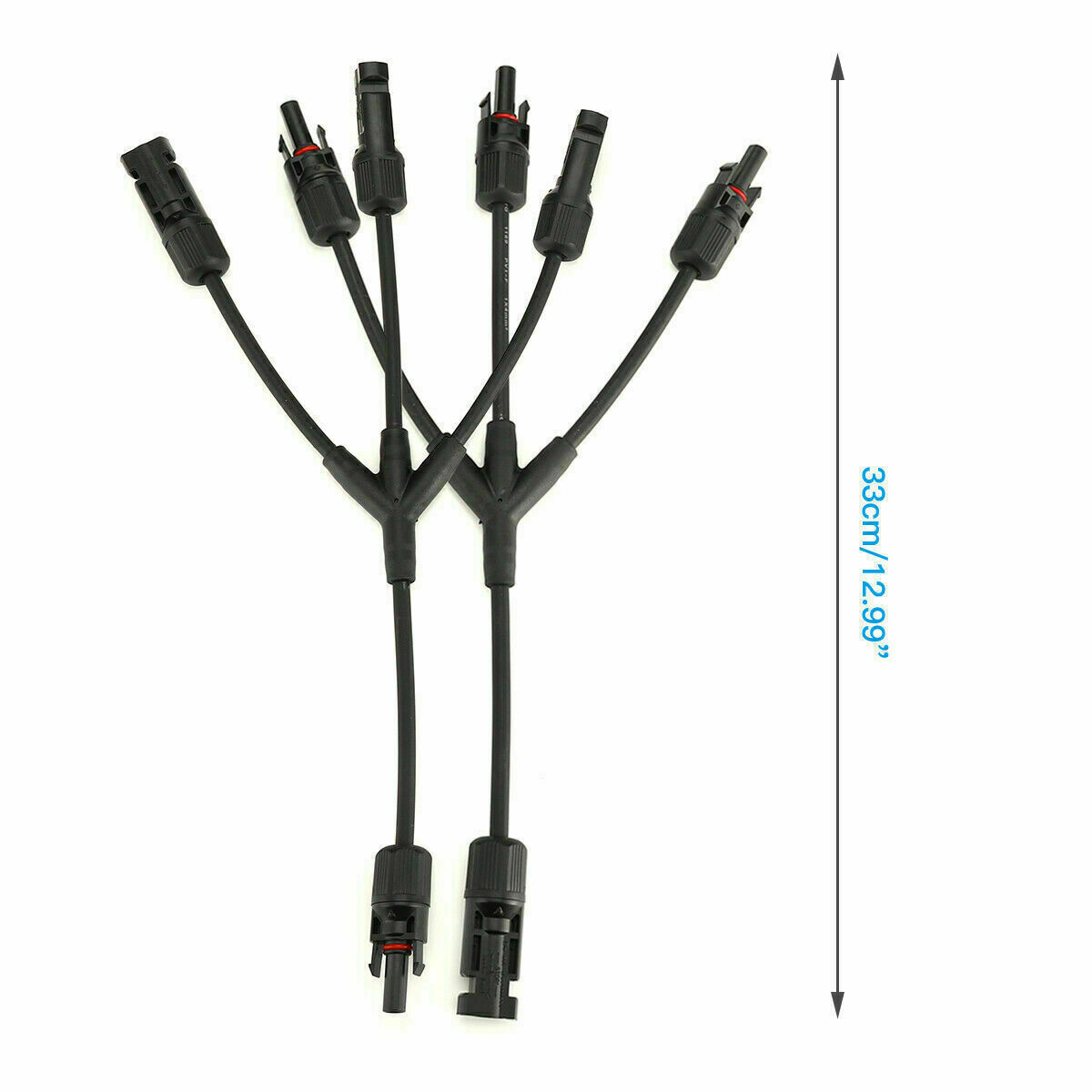

Solar Panel Y / T Branch Cable Connection Waterproof Adapter Connector Extension
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded |
| Type | Solar Panel kits |
| Color | Black |
| MPN | Does Not Apply |
| Country/Region Of Manufacture | China |

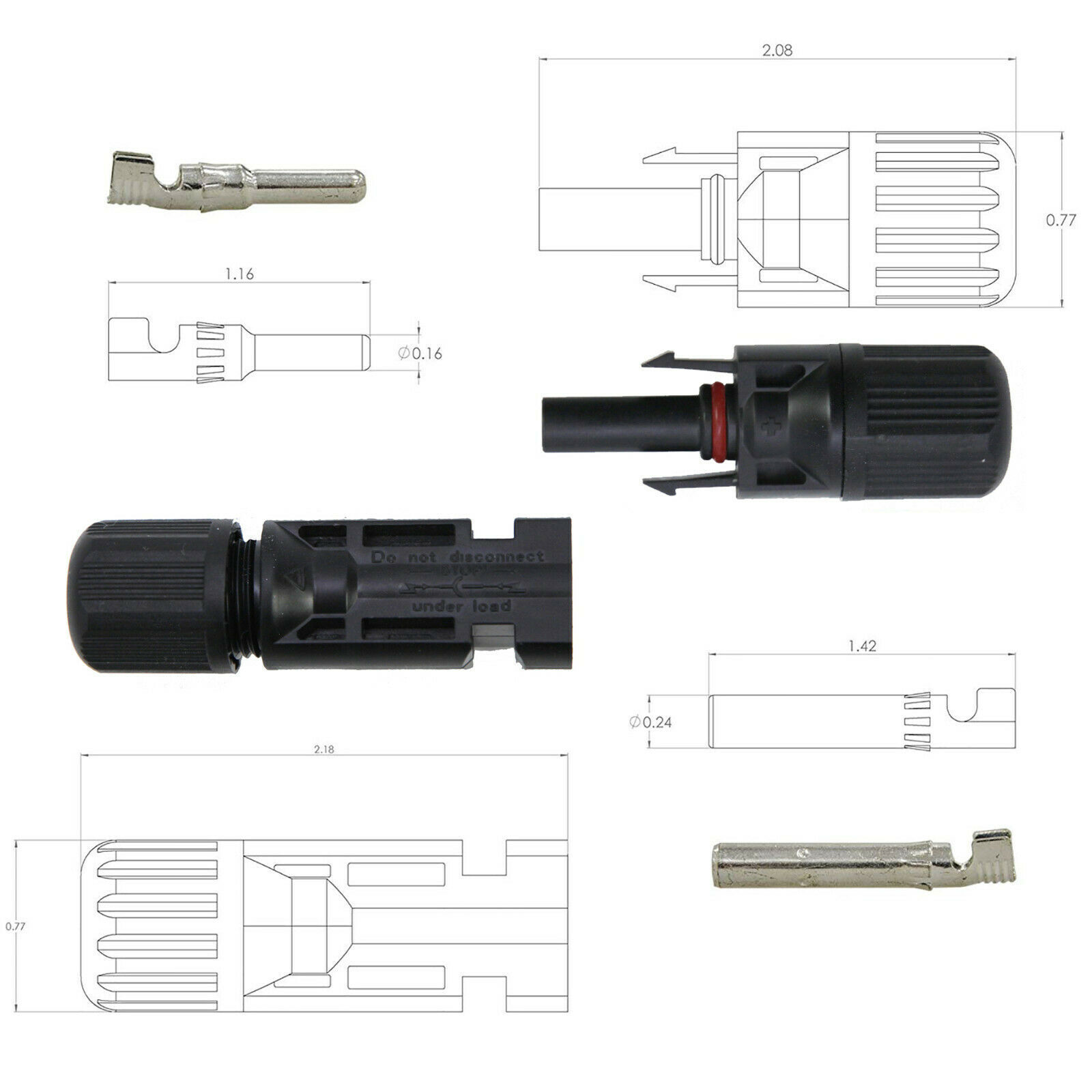

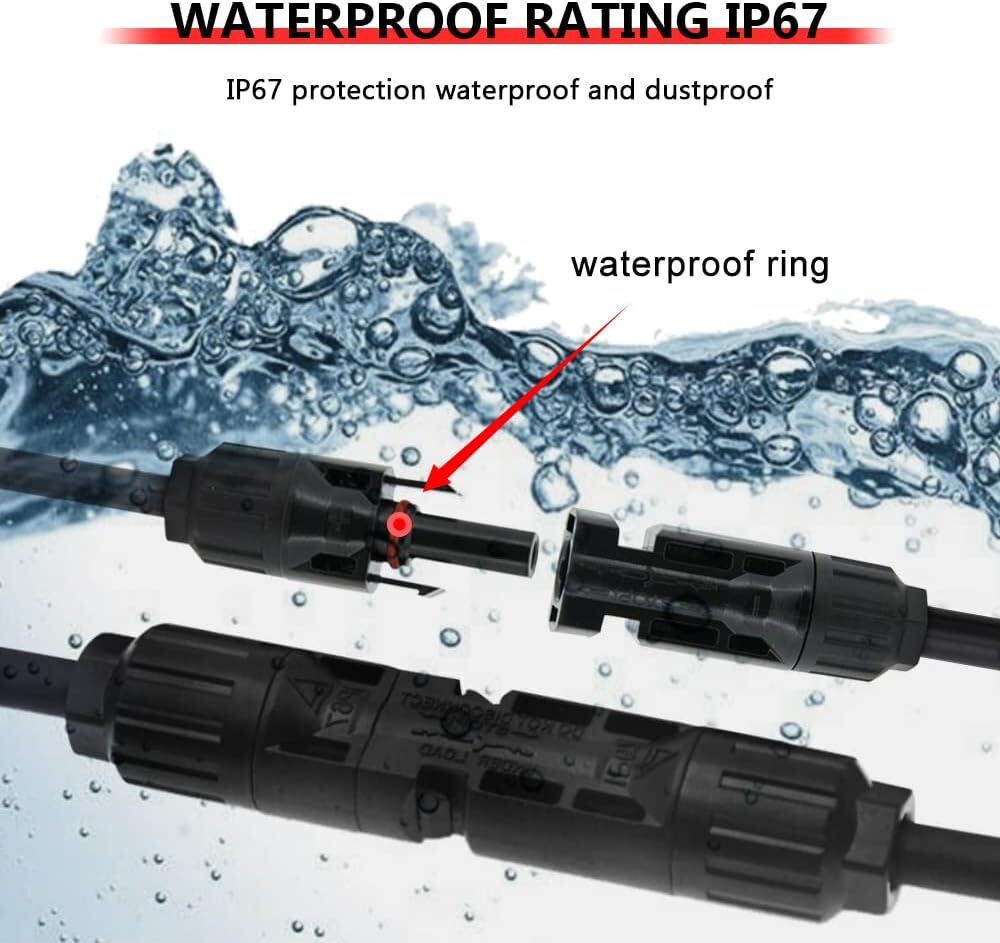

SHIP ALL ITEMS WITHIN 24 HOURS USPS 1ST CLASS & TRACKING NUMBER SERVICE Welcome Retail, Wholesale & Drop-Shipping! Y Branch Parameter: Model: 1 to 2 MC4 Connector Rated current: 20A(4mm²)30A(6mm²) Rated voltage: 1000V DC Contact resistance: 500mΩ Suitable single core cable section: 2.5mm2, 4mm2, 6mm2 Cable outer diameter: Φ5mm ～Φ 7mm Connector insulation material: PPO Degree of protection: IP67 Safety: II Operating temperature range: -40 ~ +105 ℃ Model : 1 to 3 MC4 Connector Rated voltage: TUV1000 V DC /UL 600V DC Current : 20A~30A Wire gauge：2.5mm²~6mm² / 14AWG~10AWG Terminal specification ：φ4.0mm High voltage ： TUV6000 V AC(1 min) /UL 2200V DC(1 min) Safety: II Connector conductor material: Copper,Silver Plated Contact resistance: ≤5mΩ Material: PPO Degree of protection: IP68(IEC 60529) Temperature rating: -40 degree ~ +85 degree Flame Retardant Grade: UL94V-O Model : 1 to 4 MC4 Connector It can be used in harsh environment Created seal, design of dust proof Strong pulling force capability Lower contact resistance Load capability with big current and high voltage Double seal rings for better waterproof effect With excellent aging resistance and UV endurance Compatible with PV cables with different insulation diameters Resistance of extra high & low temperature and fireproof Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument 10 Pair MC4 Connectors Test voltage: 6 kV (50 Hz) Operating temperature: -40°C ~ 85°C Approvals: IP 67 protecting grade, safety class ii, flame class UL94-V0 Contact resistance: ≤5mΩ Insertion / withdrawal force: ≤50N / ≥50N Locking system: Snap in T Type Male/Female Solar Panel Cable Connectors: 2 Branch : Insulation Material: PPO color: black Contact Material: Copper,Silver Plated Rated Current: 50A Retaed Voltage: 1000 VDC Test Voltage: 6000 VDC (50Hz,min) Protection Class: II Contact Resistance: 0.5 mΩ Temperature Range: -40℃ to +90℃ Protection Degree: IP67/IP2 Flame Class: UL94-VO Insertion force: ≤ 50N Withdrawal force:≥ 50N 3 Branch : T Type 3 Branch Solar Panel Cable Photovoltaic Connectors MFFF FMMM IP65 Color : Black Maxi operating current : 30A; Temperature : -40 ~ 90; Safety class :CIass II; Waterproof rating : IP65; Maximum voltage : DC1000V. 4 Branch : AC/DC Solar Branch Connectors MFFFF FMMMM IP65 Color : Black Maxi operating current : 50A; Temperature : -40 ~ 90; Safety class :CIass II; Waterproof rating : IP65; Maximum voltage : DC1000V. Package included: 1 Pair of Y/T Branch Solar Panel Cable Connectors ------------------------------------------------------------------------------------------------------------------------- Delivery Details: We will ship out the item within 1 working days from Monday to Saturday. We offer USPS First Class with Free Tracking Number Service to ensure your package arrive fast and safely. We are off in weekend, The orders from weekend will ship in next Monday. If you can not accept "Weekend off", Kindly please cancel the order or message us to cancel it. Return Policy: We offer 30 days refund or exchange policy on defective or wrong items since you receive the item. If you are not satisfied with the item. please contact us for an item exchange or refund. Buyer is responsible for shipping cost incurred shipping item back. Contact Us: Any queries or issues incurred, please feel free to contact us via eBay message, we are always here ready for help. DO NOT open return request or leave negative feedback without asking for help. Highly appreciated your POSITIVE feedback & 5 star DSR. Enjoy shopping.
