Single Axis Solar Tracker Kit – 6000N Linear Actuator Controller Sun Tracking EL
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | NST-6000N |
| Input Voltage | DC 12V |
| Linear Actuator Speed | 4.5mm/s |
| Linear Actuator Max Push Load | 6000N/600KG/1320Lbs |
| Linear Actuator Max Pull Load | 4000N/400KG/880lbs |
| Duty Cycle | 25% |
| Operating Frequency | 20% |
| Type | Solar Tracker Kit |
| MPN | Does Not Apply |
| Recommended Environment | Outdoor |
| Brand | SZMWKJ |
| Solar Technology | Does Not Apply |
| Application | Home/Garden |
| Resistance Properties | Does Not Apply |
| Current Rating | Max 15A |
| Country/Region Of Manufacture | China |
| System Configuration | Does Not Apply |
| Power Source | Electricity |
| Features | All Daylight Conditions |
| Power | Does Not Apply |
| Current Output | Max 15A |
| Charging Mode | Does Not Apply |
| Voltage | 12 V |

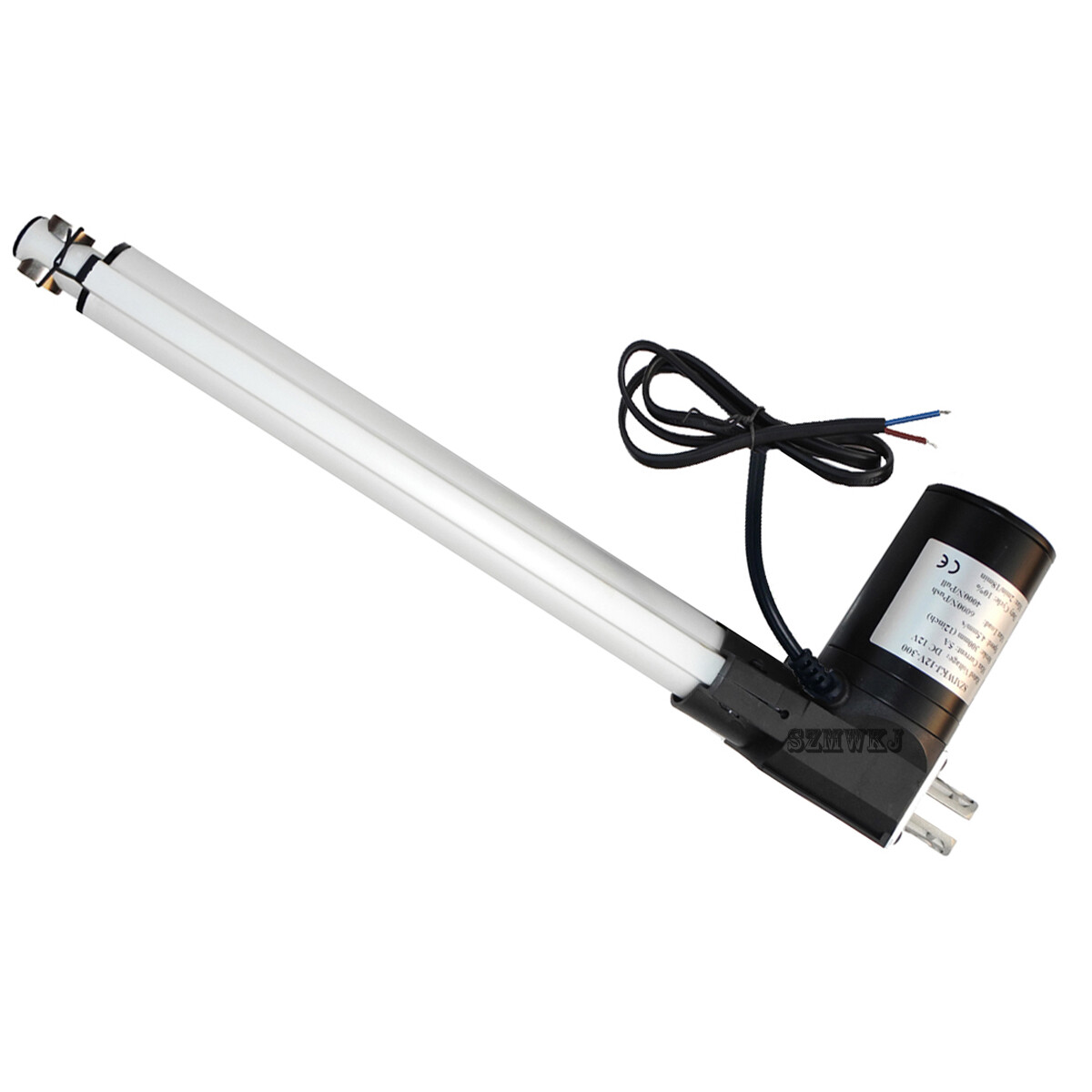

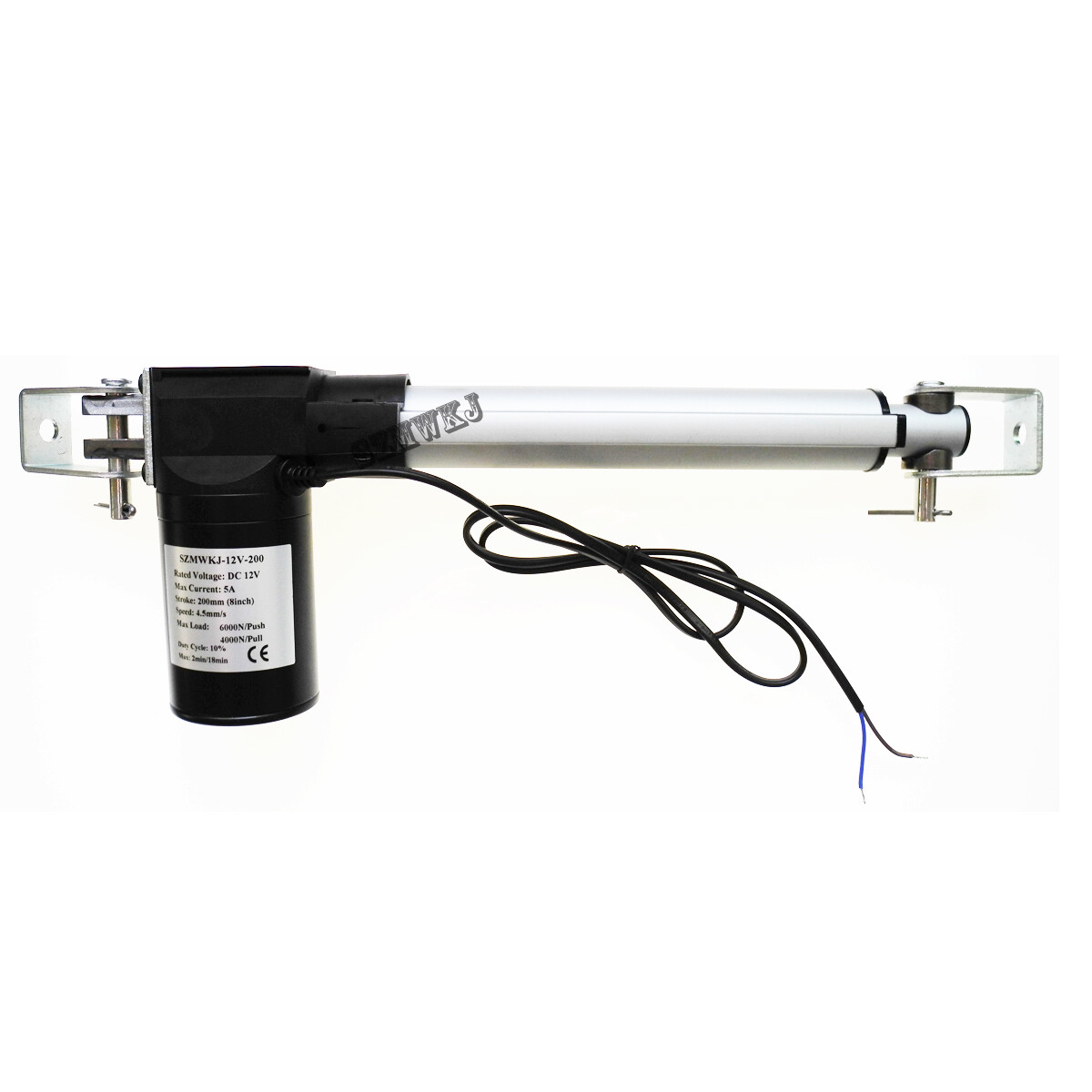

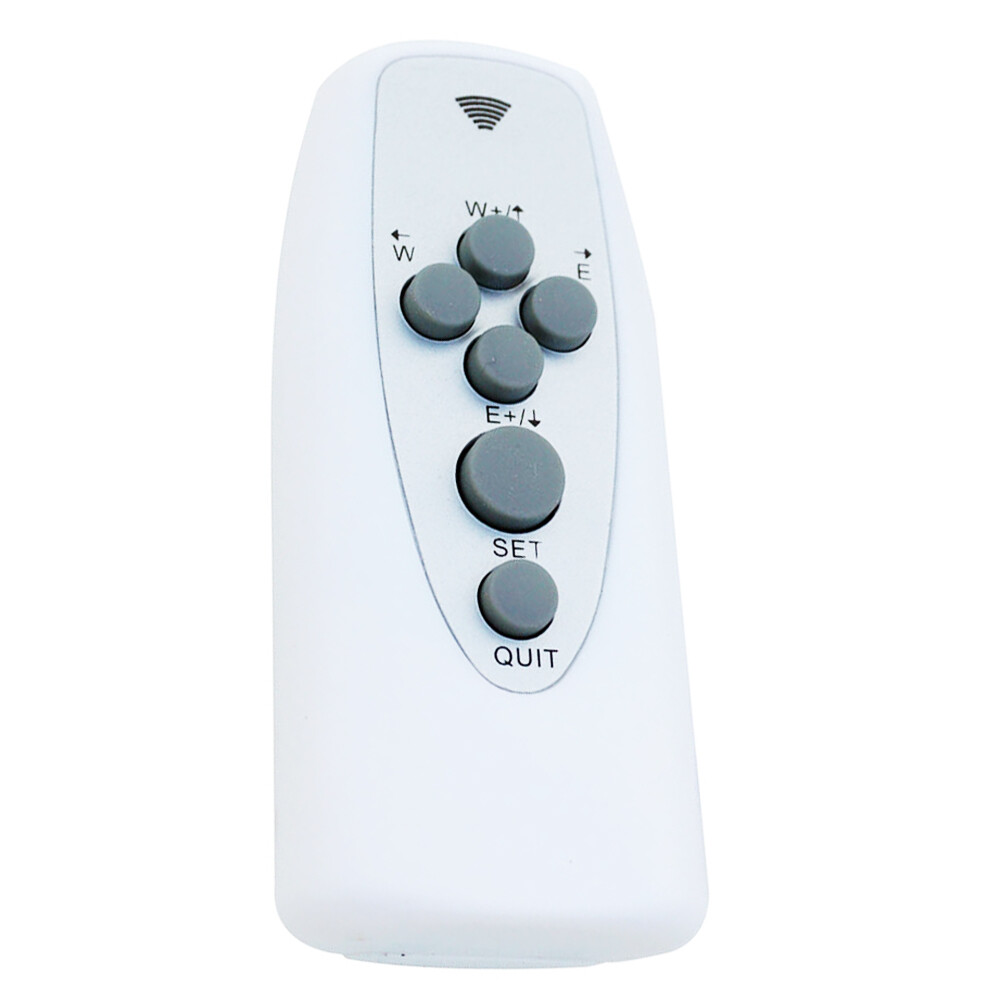

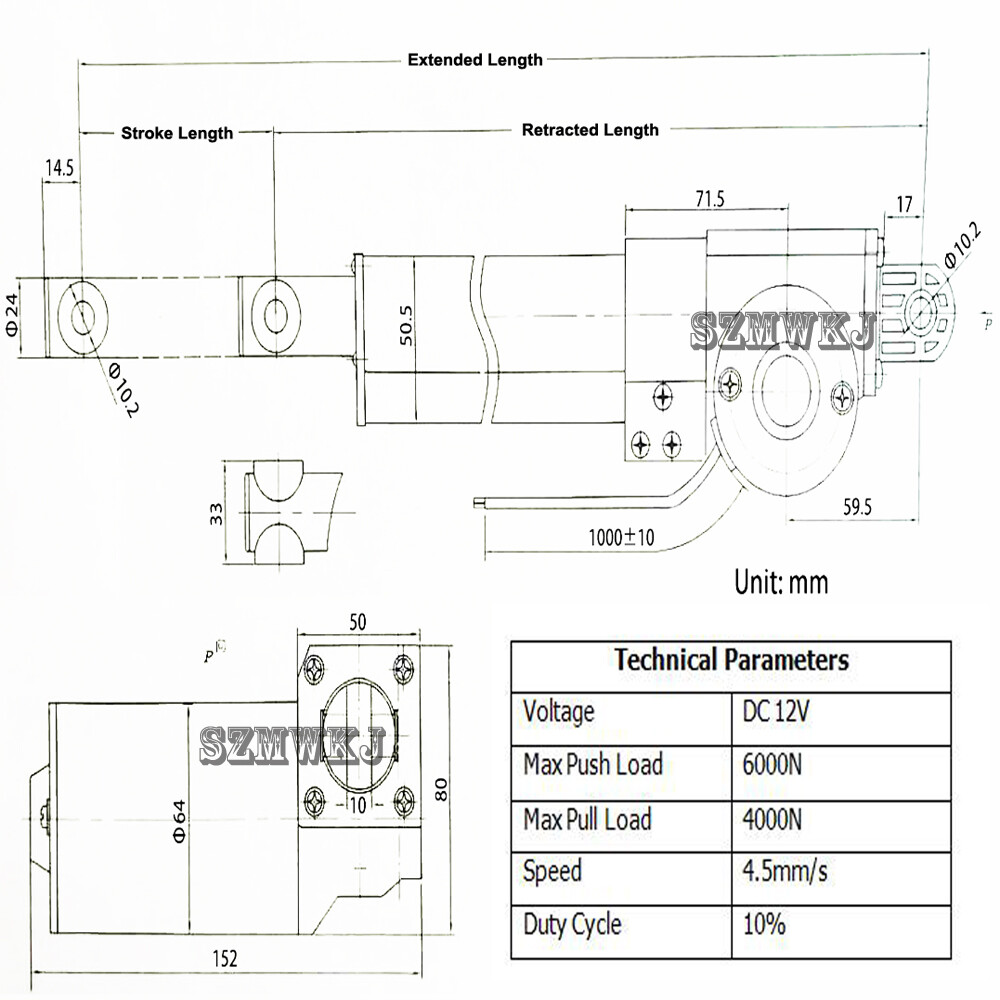

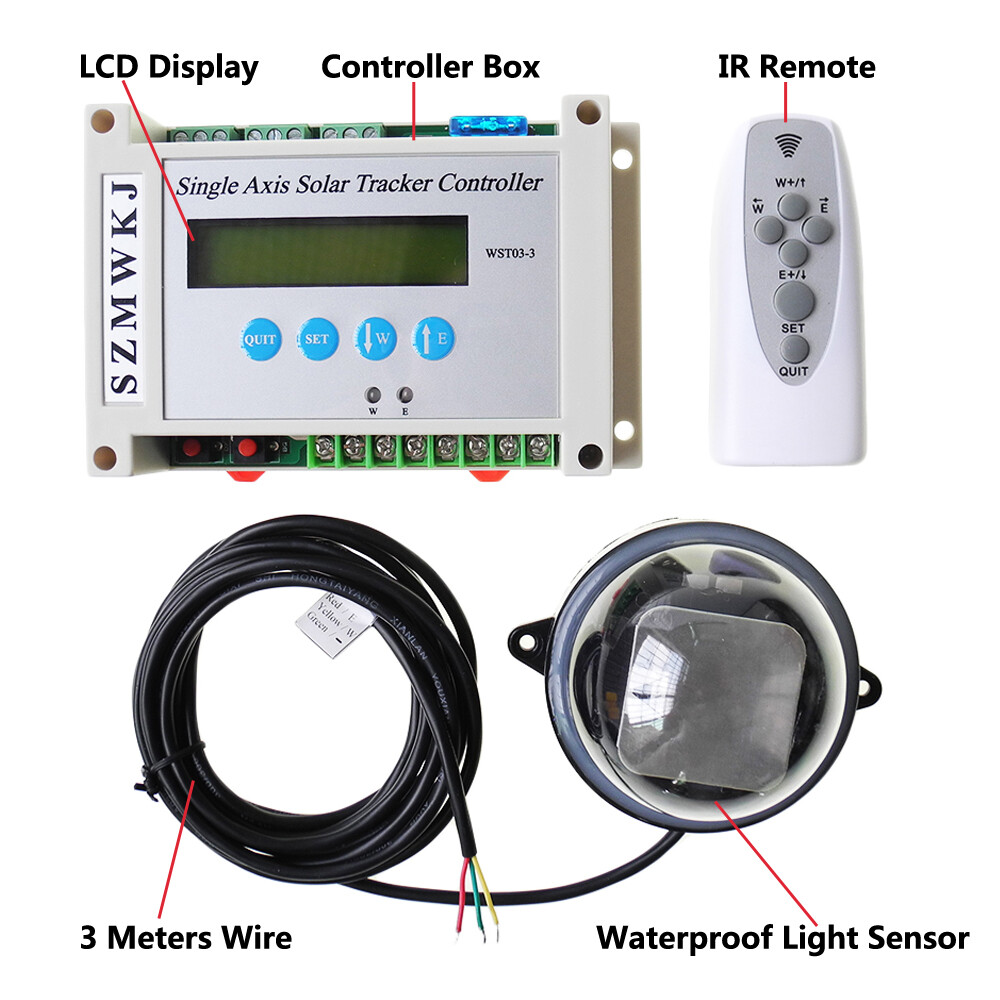

DescriptionSingle Axis Solar Tracker Kit - 6000N Linear Actuator Controller Sun Tracking IG Here for sale is 1KW Complete Single Axis Solar Tracker Kit, items Including the 6000N DC 12V Linear Actuator W/ Mounting Brackets and the Electronic LCD Controller you need for a single axis solar tracker. * 1x 6000N DC 12V Linear Actuator (Linear Actuator Size is AT YOUR OPTION). * 1x Single Axis LCD Solar Tracker Controller+Light Sensor+IR Remote * 2x Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuator Note 1: The battery in the photo is only for reference and is not included in the package. Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 5A. Note 3: The solar tracker controller box is not waterproof, remember to protect it when assembling. Specification: Input Voltage: DC 12V Material: Aluminum Alloy Color: Black, Silver Power Cord Length: 1 Meter / 40inch Load Capacity: 6000N/1320Lbs Max Push Load: 6000N/1320Lbs Max Pull Load: 4000N/880lbs Speed: 4.5mm/s Stroke Length: 150/200/300/400/450mm Stroke Optional No-load Current: 1A Max Load Current: 3A Duty Cycle: 10% Operating Frequency: 2min/18min (Max)Certification: CENoise Level: 48dbProtection Level: IP54 Working Temperature: -26°C to +65°C Notice: Built-in limit switches,not adjustable after leave factory. Dimensional Drawing: Stroke Length100mm/4"150mm/6"200mm/8"300mm/12"400mm/16"450mm/18"Retracted Length260mm/10.24"310mm/12.20"360mm/14.17"460mm/18.11"580mm/22.83"650mm/25.59"Extended Length360mm/14.17"460mm/18.11"560mm/22.05"760mm/29.92"980mm/38.58"1100mm/43.31" Note: Please check the dimensions carefully and choose the right size as you need. For more details of our 6000N Linear Actuators, Pls Click Here This is WST03-5 Single Axis Solar Tracker Controller, the main function is to control the single axis (oblique single axis)system to track the sunlight. Items include the LCD controller box, light sensor&3 meters wire and IR (infrared) remote. Specification:Product NameWST03-3 Solar Tracker ControllerBrandSZMWKJCondition100% NewController Box Dimension145x90x40mm (5.71"x3.54"x1.57")Input VoltageDC 12V/24V (DC 9V~35V)Max Load Current15AOperating Temperature-20℃ to +60℃Tracking Accuracy≤1° Features:1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed);2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging;3.With LCD display which can show multiple working modes and parameters;4.Many of the parameters can be set (Tracking accuracy, threshold value of the light sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...);5.With strong wind protection mode (Wind speed sensor is required);6.Can set the platform stay at any position at night (or cloudy day);7. Can connect limit switch;8.Can be operated by IR remote control or the buttons on the controller box;9.Reverse battery protection, over-current protection; standby current ≤15mA.For more details of our Single Axis Solar Tracker Controller, Pls Click Here * Standard 1 year warranty.* Free-maintenance.* Easy-installation.* Single axis tracker provides up to 35% more power production.* Engineered to hold up to 1000 Watts of solar panels.* Waterproof with IP65.* Small self–consumption. * The Input Voltage for the whole system should be DC 12V.* Never approach a solar tracker while the Solar Tracker electronics are “on”.* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.* Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker. Solar tracking system: Solar photovoltaic System, solar thermal system,etc. Want more information? Additional information and detailed instructions can be found in the User's Manual Payment* We accept PayPal only. * All major credit cards are accepted through secure payment processor PayPal. * Payment must be received within 7 business days of auction closing. * Please make sure your paypal and ebay address is correct. Or not, please correct it before payment. Shipping* This item will be shipped out within the Stated Handling Time after confirmed payment received. * Goods in stock in USA, buyer can get the parcel around 3-5 business days. * We provide tracking number freely for all buyers. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items.
