Single Axis Solar Panel Tracking Sunlight Tracker Controller DIY PV Solar System
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Output | 15A or Less |
| System Configuration | Does not apply |
| Solar Technology | Solar Panel Tracking |
| Power Source | Electricity |
| Current Rating | 15A or Less |
| Wattage | Does not apply |
| MPN | Does not apply |
| Brand | SZMWKJ |
| Model | WST03-3 |
| Features | Automatically Tracking |
| Country/Region Of Manufacture | China |
| Charging Mode | Does not apply |
| Resistance Properties | Does not apply |
| Application | Electronics |
| Power | Does not apply |

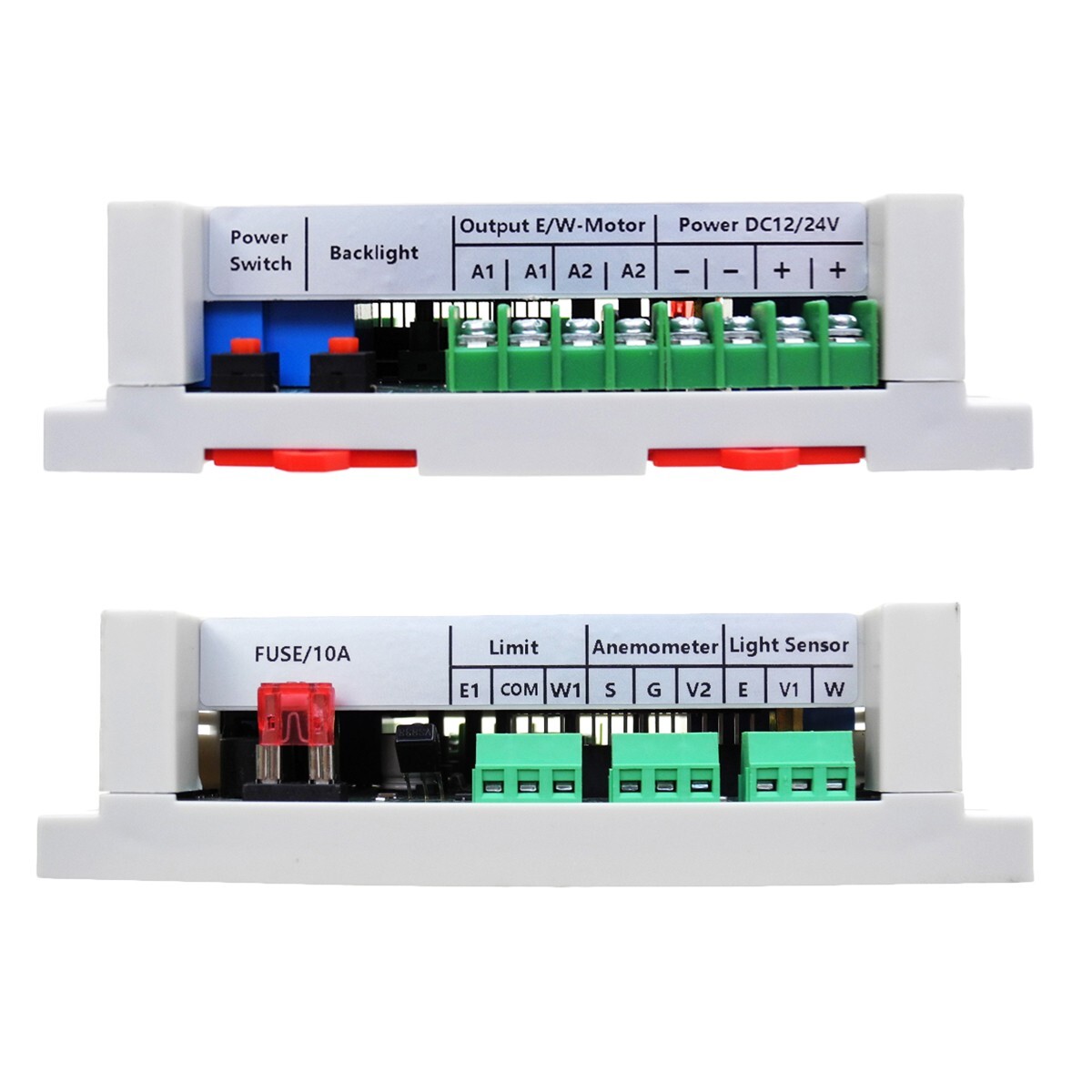

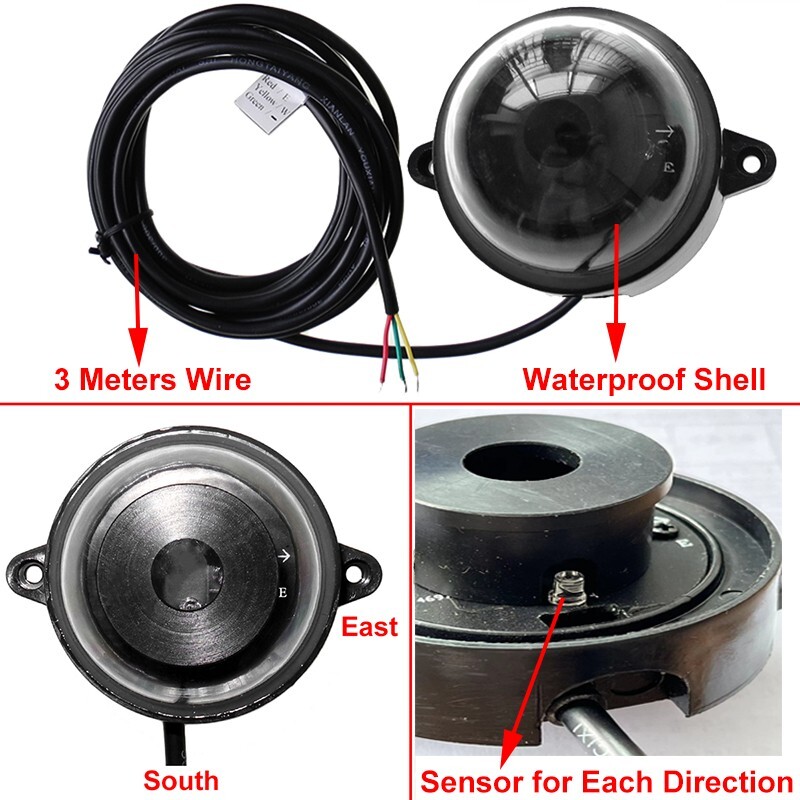

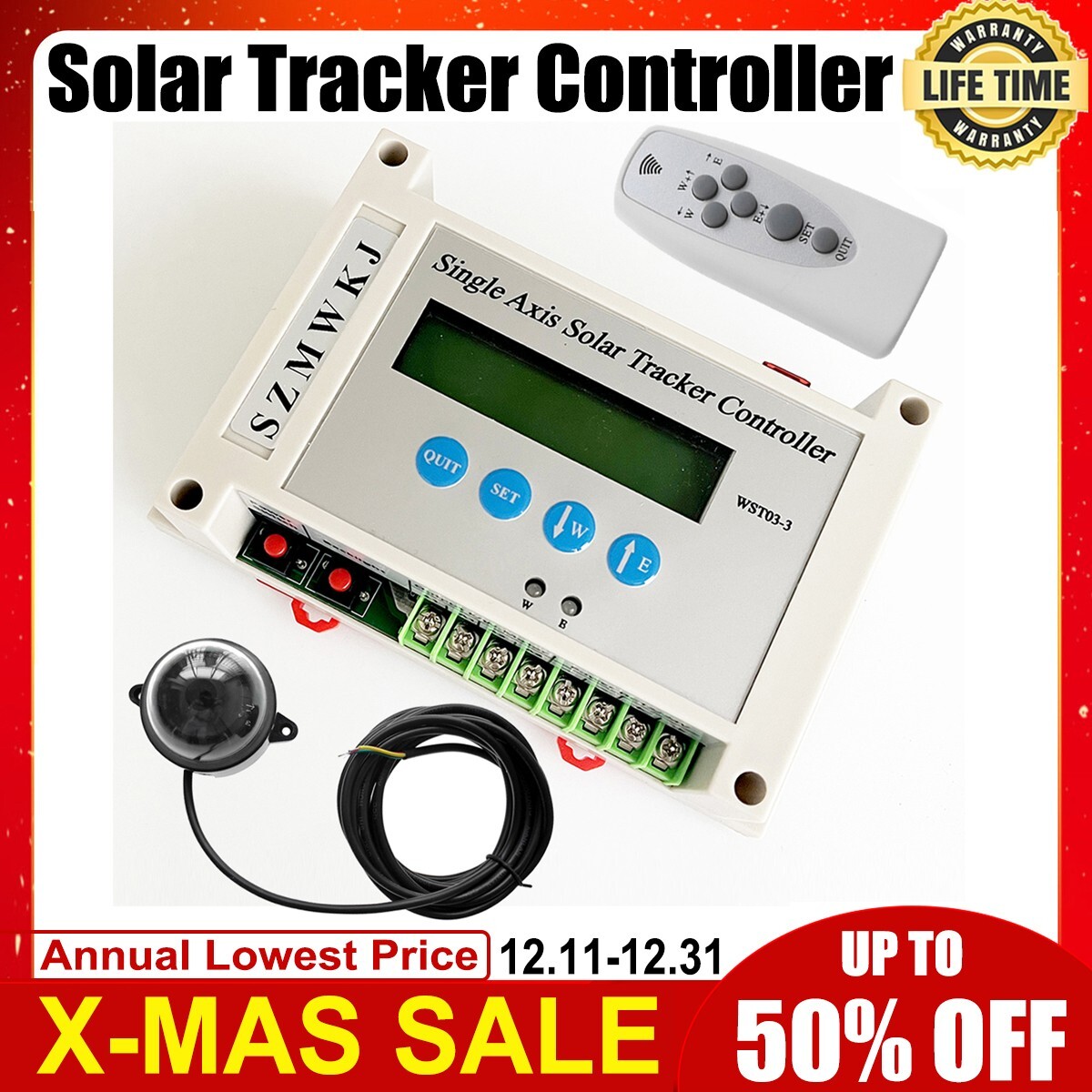

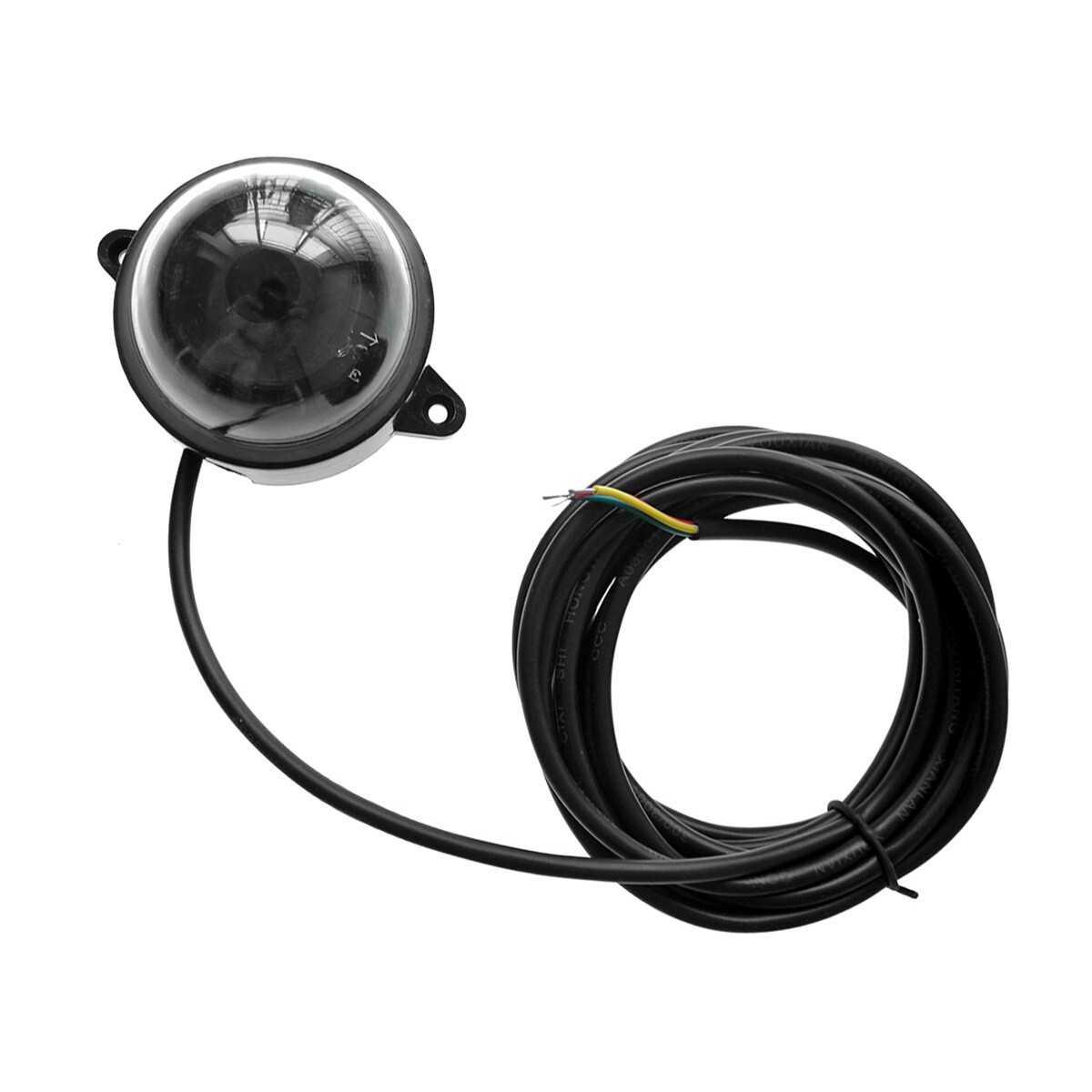

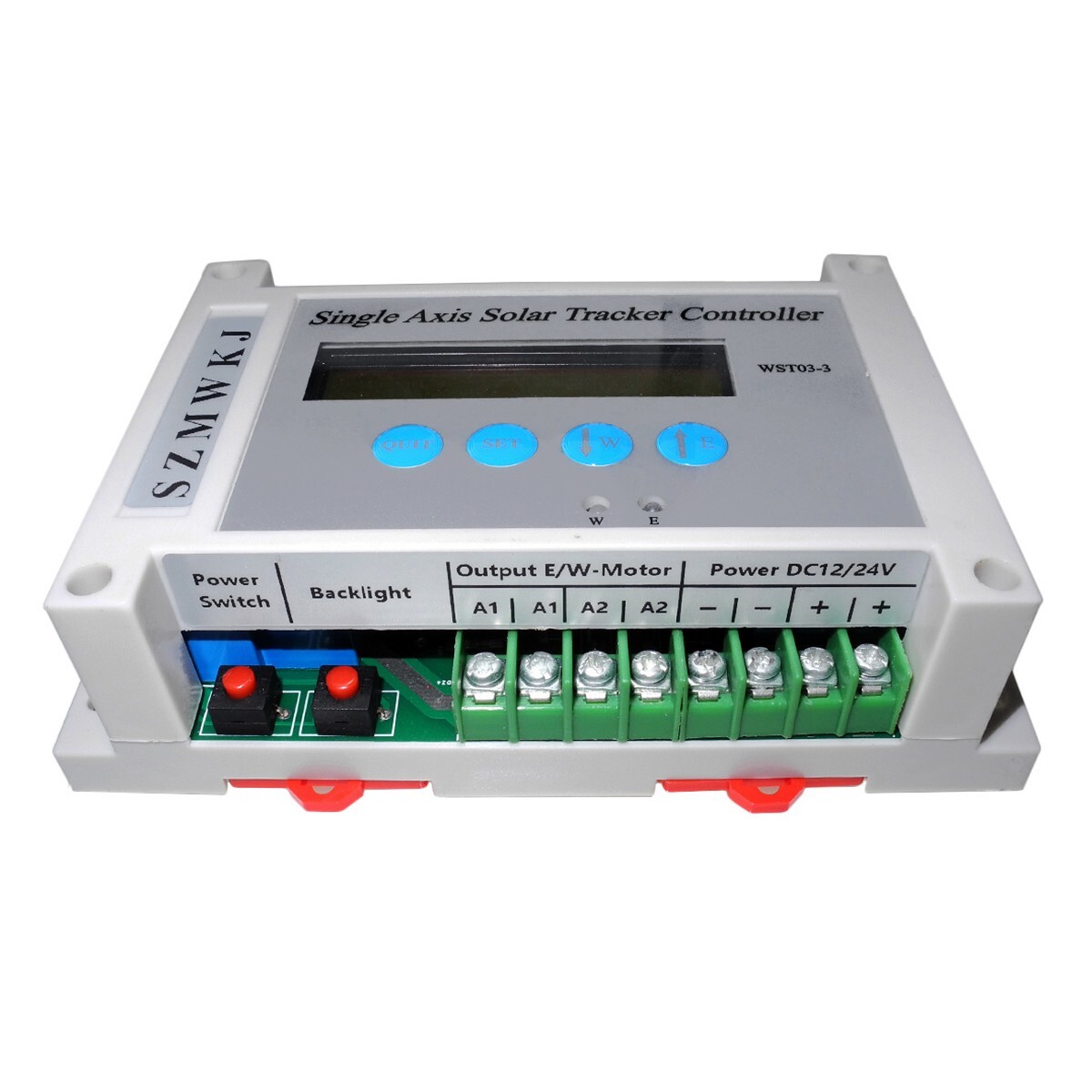

Single Axis Solar Panel Tracking Sunlight Tracker Controller DIY PV Solar System Click Here to But It Now Click Here to But It Now Click Here to But It Now Single Axis Solar Panel Tracking Sunlight Tracker Controller DIY PV Solar System This is WST03-3 Single Axis Solar Tracker Controller, The whole unit contains the Controller Box, Light Sensor With 3 Meters Wire and IR (infrared) Remote control. The controller analyzes the signal from the light sensor, then control the motor of the corresponding direction to execute positive rotation, reverse rotation and stop, and make the platform to be aligned with the sun. Three Modes will appear during the controller's auto working, the controller will automatically switch the three modes according to different conditions. The three Modes are: Sunny Day Auto Tracking Mode, Night (Cloudy Day) Mode, Strong Wind Protection Mode. Users can set the parameters and working modes by the LCD screen for actual needs. There is an IR Remote for manual control, it can be used for testing when you assemble/use the controller the first time. Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs. We provide more instruction and detailed settings in the English User's Manual. Package Included:* 1PCS Single Axis LCD Controller Box;* 1PCS Light Sensor with 3 Meters Wire; * 1PCS IR Remote Control (No Battery Included);* 1PCS English User's Manual. Application: Solar tracking system: Solar photovoltaic System, solar thermal system, light guide and lighting, etc. Want more information? Additional information and detailed instructions can be found in the User's Manual. About Shipping: * This item will be shipped out within 1-3 Business Days after confirmed payment received. * Goods are in stock in USA Warehouses, buyer can get the parcel around 3-5 business days. * We provide tracking number freely for all buyers. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items. * Any potential customs tax fee applied to the parcel should be covered by the buyer. On Oct 18, 2023 at 20:15:41 PDT, seller added the following information:
