Magerack Tile Hook Bracket Solar Panel PV Module Mounting Racking Pack 10
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Magerack |
| Model | Low Tile Hook |
| MPN | 101-019-111 |

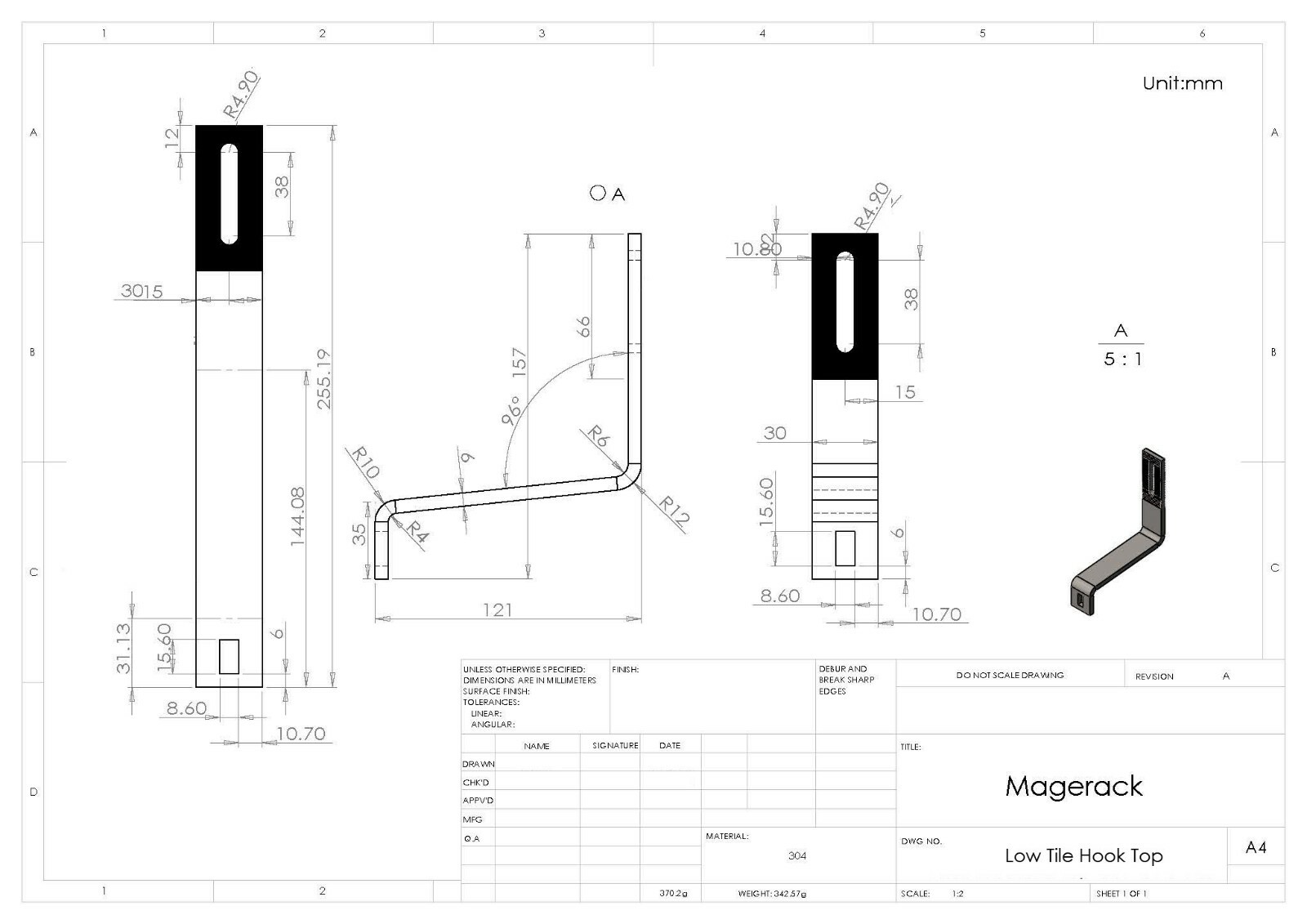

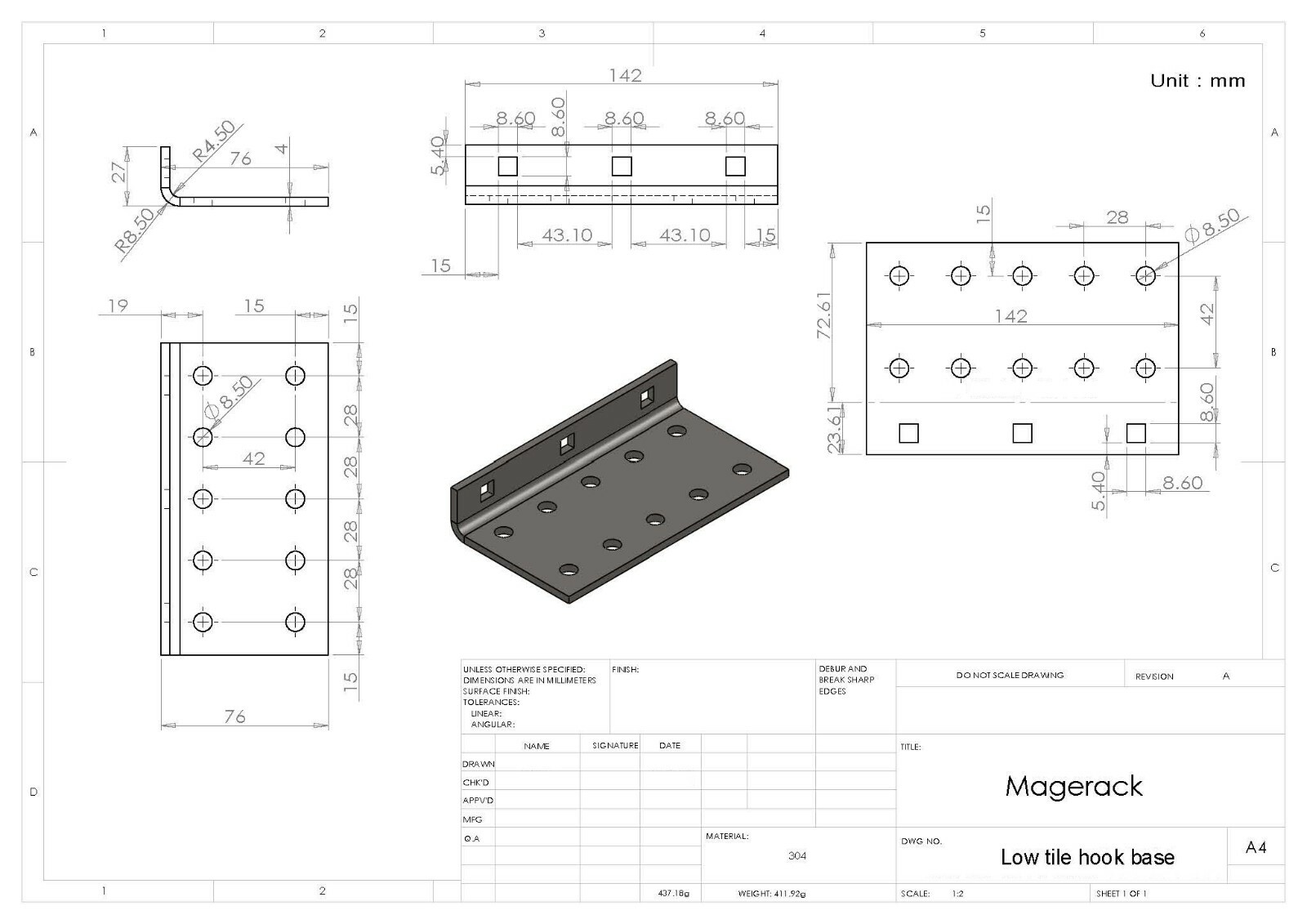

Up for sale are 10 sets of Magerack Tile Hook that can be used for solar installation on sloped residential flat or curved (Spanish, S tile) tile roof with or without batten. The tile hooks are compatible with most common rails and made of 304 stainless steel. Flashing is made of aluminum sheet 3003 H14. The height is adjustable to accommodate different types of tile roof installed with or without batten. The clearance under the horizontal portion of the tile hook is 1.25” – 2.13” (32 – 54 mm). It is ideal for flat tile roof with or without batten, or curved (Spanish, S tile) tile roof installed with or without batten. •Height-adjustable•Wider distance of bolt holes to avoid splitting rafter•6 mm thick stainless steel top arm and 4 mm thick stainless steel bottom plate•The vertical slot, through which a fastener is attached to rail, is for up to 3/8" bolt•Optional flashing available
