ExpertBattery 200W 12V Monocrystalline Solar Panel Kit with MPPT 20A Controller
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Rating | Greater Than 10 A |
| Model | ExpertBattery MPPT |
| Connector Type | MC4 |
| Maximum Input Power | 151-200 W |
| Wattage | 200-299 W |
| Current Type | AC/DC |
| System Configuration | Off-Grid |
| Maximum Input Voltage | 11-20 V |
| Power Source | Solar |
| Type | Solar Panel KIt |
| Features | All Daylight Conditions |
| MPN | CBL200M20C9 |
| Power | 200 W |
| Current Output | 11-19 A |
| Brand | ECI POWER |
| Solar Technology | Monocrystalline |
| Application | Agriculture/Farming |
| Resistance Properties | Abrasion Resistant |
| Voltage | 12 V |

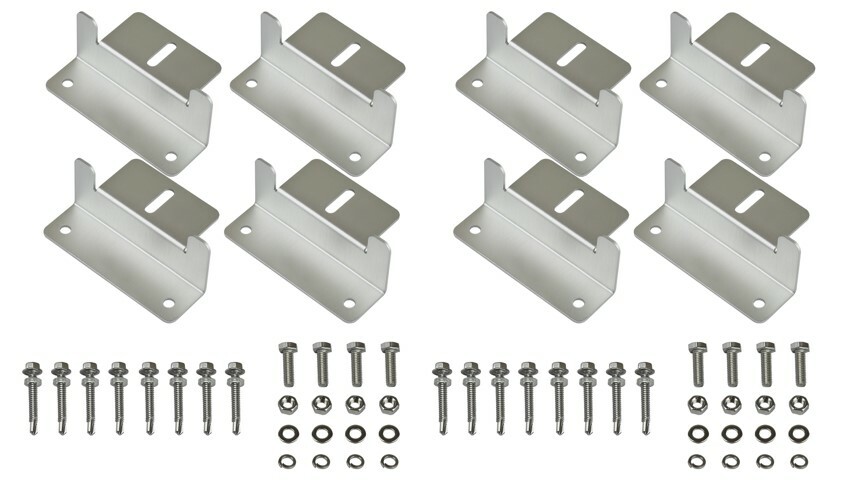

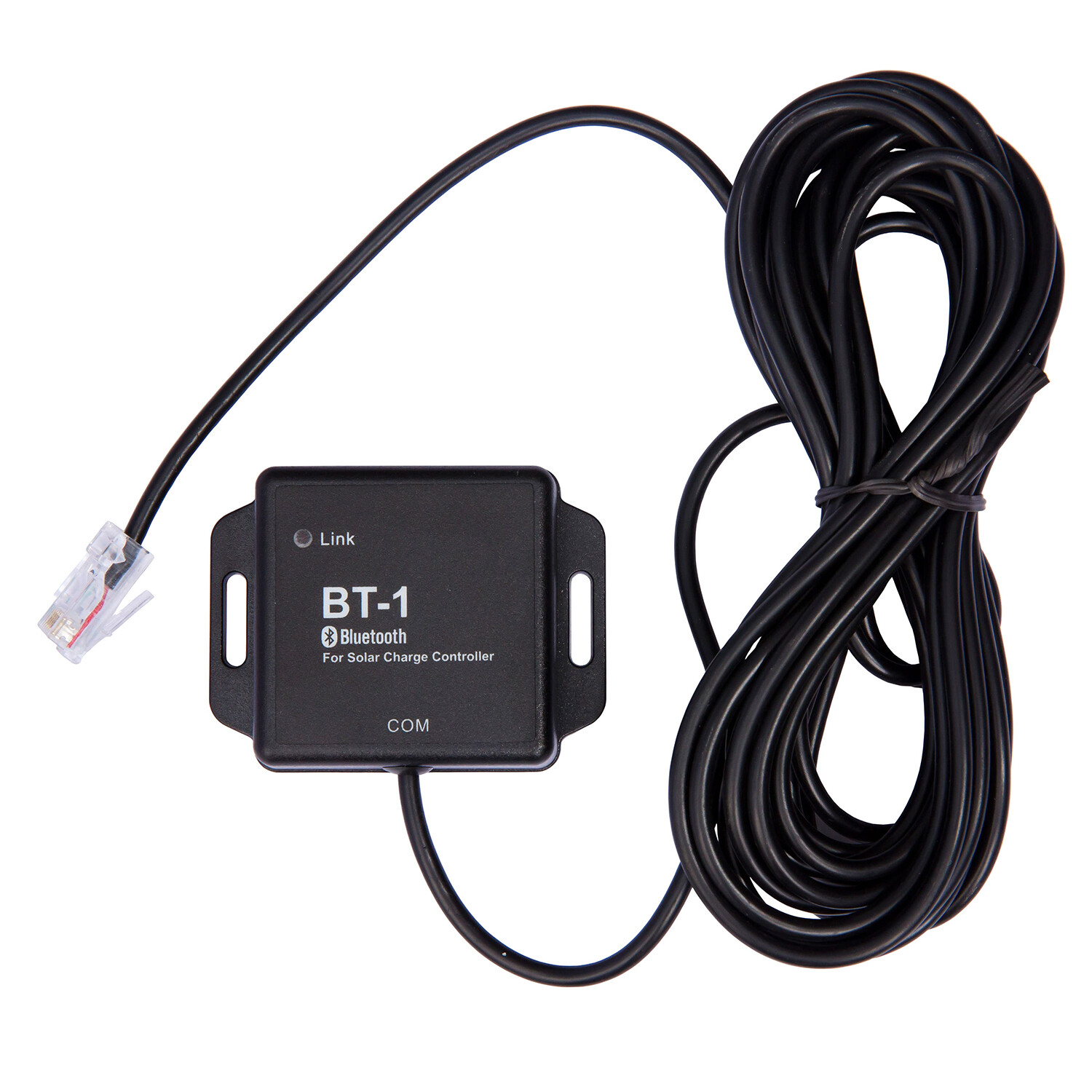

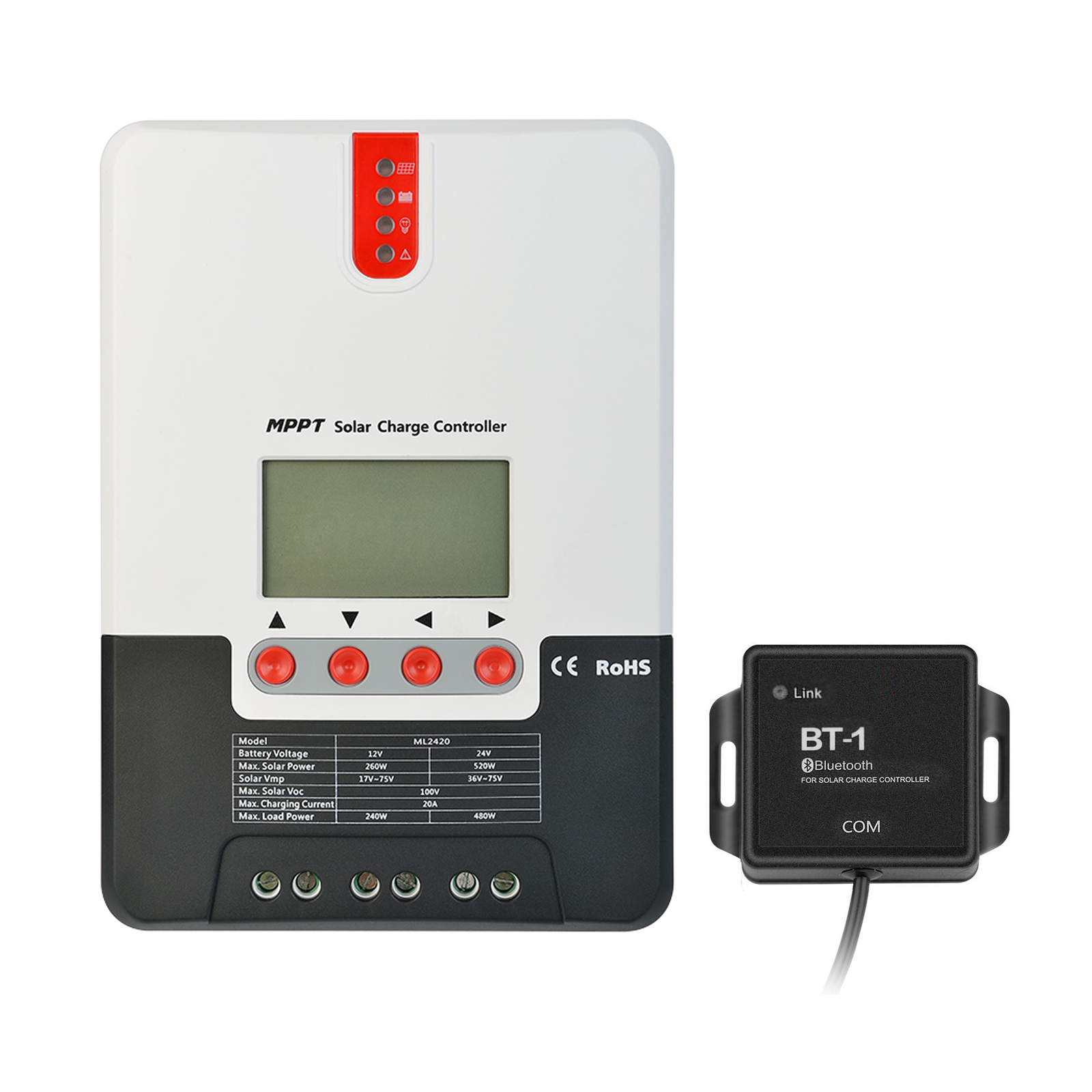

Top QualityFree Shipping30 Day Money Back Guarantee1 Year Warranty 12V 200W Solar Panel Kit with 10A MPPT Controller and Bluetooth Module DIY SOLAR KITThis Solar Kit is perfect for off-grid applications and DIY solar projects. This kit includes 2 x 100W monocrystalline solar panels, 1 x 20A MPPT solar charge controller, 1 x bluetooth module for controller, 1 pair x Y-branch Cable, 1 pair x 10ft 12AWG panel cable, 1 pair x 6ft 12AWG battery cable with M8 lugs, and 2 sets x mounting Z brackets. It is great for RVs, trailers, boats, sheds, cabins, and other DIY solar projects you have in mind. On the base of one of the most trusted battery sellers on eBay, we are expanding in the solar world as well. 100W Monocrystalline Solar Panels Type Connections Rated Power Rated Voltage (Vmp) Open Circuit Voltage (Voc) Short Circuit Current (Isc) Rated Current (Imp) Max. Series Fuse Rating Power Temp Coefficient Max. System Voltage Glass Size WeightMonocrystalline Solar CellsMC4100W16.77 V19.83 V6.56 A6.26 A15 A–0.23% / °C600VDC (UL) Heavy-Duty Aluminum Frame and High Transparency Tempered Glass44.46'' x 20.08'' x 1.18''15 LbsMonitor And Change Settings On Your SmartphonePanel StatusBattery Status Load Status20A MPPT Solar Charge Controller Rated Battery Voltage Battery Type: Solar Panel Input Rated Current Max. PV System Input Power Float Charge (Lead Acid) Boost Voltage (LiFePO4) Discharge Stop Discharge Reconnect Self-consume Operating Temperature Size Weight12V / 24V Auto DetectLead Acid (Wet, Gel, Sealed) and LiFePO4< 100 V (77 °F), 90 V (-13 °F) 20 A 260W/12V; 520W/24V13.8V14.4V11.1 V12.6 V< 10 mA-35 ~ +60°C8.0‘’ x 5.6'' x 2.5''2.4 lb ↵Y-Branch Cable Rated Current: 20ARated Voltage: DC 1000V ↵Panel Cable Length: 10ftWire Gauge: 12 AWG ↵Battery Cable Length/Lugs: 6ft/M8Wire Gauge: 12 AWG m ↵Mounting Brackets M6 x 16mm Hex Cap Bolt and NultM6 Split Lock Washer, Flat Washer#10 x 11/4 in Self-Drilling Cap Screw How to connect? Step 1: Connect the battery (not included; positive first and negative second). Step 2: Connect the Load (optional). Step 3: Connect the PV array. Step 4: Check the Connection. Step 5: Confirm Power On. Note: -Please make sure to connect the battery, DC load, and solar panel with the correct connections and polarity with the controller. -Please disconnect the system in reverse order as the installation.Why Choose Us?Local US BusinessEstablished in 1987Guaranteed US Customer SupportExpertBattery was established as a means to provide our buyers with premium products without having to pay premium prices. We specialize in the distribution of sealed lead-acid batteries and are currently expanding our products to include portable power stations/lithium power stations, solar panels, phone chargers, and TV mount products. Unlike our competitors, our sealed lead acid batteries are built with pure lead prolonging the life of the battery, and replacements are not needed for 2-4 years. With the use of recycled lead, some of our competitors are able to provide buyers with low-cost batteries; however, the life expectancy of the battery is cut short. In order to keep our costs low, we are direct sellers meaning once our products are made and shipped to us, they are sent directly to you. We cut out the middle man thus cutting costs for you. This allows us to move thousands of products monthly, continuously replenishing our stock quantities ensuring that you receive the freshest batteries. Although some of our prices may be slightly higher than our competitors, we are firm believers in the quality of our products and our feedback is a testament to that. We have an excellent team of customer support representatives who are happy to assist you with any questions regarding our products. We look forward to doing business with you and thank you for being a valued customer.Step 1 - Assemble & ChargeStep 2 - Assess for QualityStep 3 - Pack with CareStep 4 - Speedy DeliveryOther Items You Might Be Interested In(Click for more information)LiFePO4 BatteriesSLA BatteriesGel BatteriesOn-The-Go PowersFlexible PanelsSolar PanelsSee our other itemsPaymentShippingReturnsContact UsPaymentShippingReturnsContact Us We accept the following payment methods: PayPal, Visa, Master card, American Express. We accept credit card payment for US orders only. We do not accept non-US credit cards. For international orders, we accept orders through eBay's managed payment service. We ship directly from our warehouse in Paramount, California Once payment is cleared, orders will be shipped the same business day if placed before 8:00 AM PST Monday - Friday. Otherwise, it will be shipped the following working business day. IMPORTANT DELIVERY INFORMATION: “Estimated delivery dates include seller's handling time, and will depend on shipping service selected and receipt of cleared payment. Delivery times may vary, during peak periods.” If additional postage is due upon receipt, please contact us prior to rejecting the package or payment of the package. We will not be responsible for the cost difference if payment is made prior to contacting us. All of our items come with a one year warranty We provide a 30 day money back guarantee on defective items. Restocking fees and other fees may apply upon the condition of the returned item. The warranty does not cover damage caused by accident, abuse, neglect, modification, alteration, misuse, repair, or physical damages. All NON-SELLER mistake's / returns are subject to a minimum of 20% restocking fee and the buyer is responsible for all return shipping expenses. Items that have been forwarded outside of the U.S will not be covered by our warranty Our office hours are Monday-Friday, 10:00AM to 5:00PM (PST). We are more than happy to help you check product compatibility, answer any question regarding our policy, products, prices, shipping and handling fees, returns and item details. Please contact us by clicking our eBay ID "EXPERTBATTERY", then “Contact Member”. You can also reach us over the phone at 1(562) 630-3001 12V 200W Solar Panel Kit with 10A MPPT Controller and Bluetooth Module DIY SOLAR KITThis Solar Kit is perfect for off-grid applications and DIY solar projects. This kit includes 2 x 100W monocrystalline solar panels, 1 x 20A MPPT solar charge controller, 1 x bluetooth module for controller, 1 pair x Y-branch Cable, 1 pair x 10ft 12AWG panel cable, 1 pair x 6ft 12AWG battery cable with M8 lugs, and 2 sets x mounting Z brackets. It is great for RVs, trailers, boats, sheds, cabins, and other DIY solar projects you have in mind. On the base of one of the most trusted battery sellers on eBay, we are expanding in the solar world as well. Why Choose Us?Local US BusinessEstablished in 1987Guaranteed US Customer Support100W Monocrystalline Solar Panels Type Connections Rated Power Rated Voltage (Vmp) Open Circuit Voltage (Voc) Short Circuit Current (Isc) Rated Current (Imp) Max. Series Fuse Rating Power Temp Coefficient Max. System Voltage Glass Size WeightMonocrystalline Solar CellsMC4100W16.77 V19.83 V6.56 A6.26 A15 A–0.23% / °C600VDC (UL) Heavy-Duty Aluminum Frame and High Transparency Tempered Glass44.46'' x 20.08'' x 1.18''15 LbsPanel StatusBattery Status Load StatusMonitor And Change Settings On Your Smartphone20A MPPT Solar Charge Controller Rated Battery Voltage Battery Type: Solar Panel Input Rated Current Max. PV System Input Power Float Charge (Lead Acid) Boost Voltage (LiFePO4) Discharge Stop Discharge Reconnect Self-consume Operating Temperature Size Weight12V / 24V Auto DetectLead Acid (Wet, Gel, Sealed) and LiFePO4< 100 V (77 °F), 90 V (-13 °F) 20 A 260W/12V; 520W/24V13.8V14.4V11.1 V12.6 V< 10 mA-35 ~ +60°C8.0‘’ x 5.6'' x 2.5''2.4 lb ↵Y-Branch Cable Rated Current: 20ARated Voltage: DC 1000V ↵Panel Cable Length: 10ftWire Gauge: 12 AWG ↵Battery Cable Length/Lugs: 6ft/M8Wire Gauge: 12 AWG m ↵Mounting Brackets M6 x 16mm Hex Cap Bolt and NultM6 Split Lock Washer, Flat Washer#10 x 11/4 in Self-Drilling Cap Screw How to connect? Step 1: Connect the battery (not included; positive first and negative second). Step 2: Connect the Load (optional). Step 3: Connect the PV array. Step 4: Check the Connection. Step 5: Confirm Power On. Note: -Please make sure to connect the battery, DC load, and solar panel with the correct connections and polarity with the controller. -Please disconnect the system in reverse order as the installation.Other Items You Might Be Interested In(Click for more information)LiFePO4 BatteriesGel BatteriesSLA BatteriesOn-The-Go PowersFlexible PanelsSolar PanelsSee our other itemsPayment We accept the following payment methods: PayPal, Visa, Master card, American Express. We accept credit card payment for US orders only. We do not accept non-US credit cards. For international orders, we accept orders through eBay's managed payment service.Shipping We ship directly from our warehouse in Paramount, California Once payment is cleared, orders will be shipped the same business day if placed before 8:00 AM PST Monday - Friday. Otherwise, it will be shipped the following working business day. IMPORTANT DELIVERY INFORMATION: “Estimated delivery dates include seller's handling time, and will depend on shipping service selected and receipt of cleared payment. Delivery times may vary, during peak periods.” If additional postage is due upon receipt, please contact us prior to rejecting the package or payment of the package. We will not be responsible for the cost difference if payment is made prior to contacting us. Returns All of our items come with a one year warranty We provide a 30 day money back guarantee on defective items. Restocking fees and other fees may apply upon the condition of the returned item. The warranty does not cover damage caused by accident, abuse, neglect, modification, alteration, misuse, repair, or physical damages. All NON-SELLER mistake's / returns are subject to a minimum of 20% restocking fee and the buyer is responsible for all return shipping expenses. Items that have been forwarded outside of the U.S will not be covered by our warranty Contact Us Our office hours are Monday-Friday, 10:00AM to 5:00PM (PST). We are more than happy to help you check product compatibility, answer any question regarding our policy, products, prices, shipping and handling fees, returns and item details. Please contact us by clicking our eBay ID "EXPERTBATTERY", then “Contact Member”. You can also reach us over the phone at 1(562) 630-3001
