EPEVER mppt Solarladeregler 10A/20A/30A/40A Solar Panels Regulator Tracer-AN
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Current Rating | 10 A - 40 A |
| Model | Tracer-AN |
| System Configuration | Off-Grid |
| Power Source | Solar |
| Features | mppt |
| MPN | 791348422158 |
| Power | 1040W |
| Current Output | 10 A -40 A |
| Brand | Epever |
| Solar Technology | MPPT |
| Application | Agriculture/Farming |
| Voltage | 12 V / 24 V |

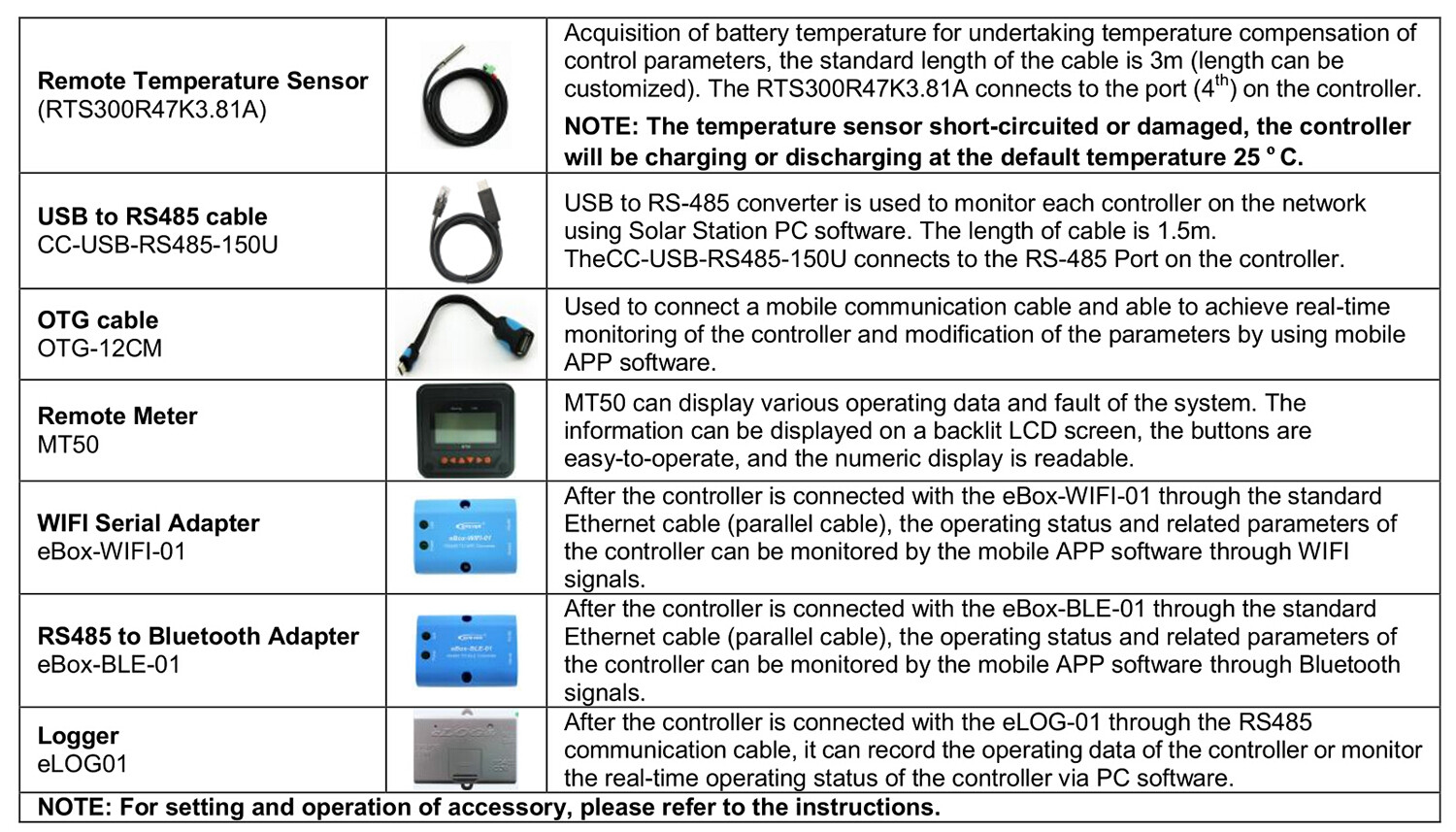

In-time shipping by DHL or Hermes from DE warehouse located in Woerth Deutschland, Germany1111MicrosoftInternetExplorer402DocumentNotSpecified7.8 磅Normal0 (In stock from 2020-10-08 )local team supply technical support and aftersles services . EPEVER MPPT Solar Charge Controller 10A/20A/30A/40A ,12V/24V Auto Work ,Solar Panels Max PV 100V , Common Negative Grounding ,with LCD Display ,Suitable for Lead-Acid (Sealed /GEL/AGM/Flooded ) and Lithium type Batteries Description：[Excellent Performance] Ultra-fast tracking speed and excellent tracking efficiency which higher than 99.5%, it can accurate recognition and tracking of multiple-peaks maximum power point. Compared with a PWM charging method, it can increase the ratio of energy utilization by 10%-30%. [Multiple Function & Accessory] Wide MPPT operating voltage range. Multiple load work mode: manual mode, light control, dual time setting and adjustment control mode. MPPT solar charge controller with RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations. Supports PC monitors and Remote Meter MT50 for real-time data viewing and parameter setting.[Quality Guarantee] We have warehouse in Chicago, which can promise the fastest delivery speed, and offer the best logistic service for you. No matter what problems you encounter in the process of purchase or use, our after-sales service team will serve you wholeheartedly. Feel free to contact by eBay message.[Usage Note] Please read the instruction manual carefully or consult customer service to avoid damage to the new controller due to improper operation. The flooded battery must be place in a well ventilated space to avoid any possible danger or explosion. And please make sure that the positive and negative terminals of each component are wired correctly.Controller Protection functions :• PV Over Current/power • PV Short Circuit • PV Reverse Polarity• Night Reverse Charging • Battery Reverse Polarity • Battery Over Voltage• Battery Over Discharge • Battery Overheating • Controller Overheating★• Lithium Battery Low Temperature • Load Short Circuit , • Load Overload •TVS High Voltage TransientsPackage include :1 x MPPT Solar Charge Controller (10A / 20A / 30A / 40A) 1 x Temp Sensor Unit (Model:RT-MF58R47K3.81A) 1 x User Manual(English) Specification:MPPT solar charge Controller 10Amp Tracer1210ANModel: Tracer1210ANRated charge and discharge current :10 AmpNominal system voltage:12V/24V DC auto workMax. PV input power: 130W charge for 12V battery system / 260W charge for 24V battery systemMax. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)Battery type : Lead-acid, Lithium and User-defined .( Sealed /GEL(AGM)/Flooded; LiFePO4/ Li[NiCoMn]O2 ; User ), (AGM battery setting same as GEL parameters, or more accurate parameters follow battery factory advice by User type )Battery voltage range : 8～32VMPP voltage range:V(BAT+2V)～72VGrounding : Common negativeTracking efficiency : ≥99.5% , Max. conversion efficiency :98%Working environment temperature : -25℃～+50℃(100% input and output)Temperature: -20°C -- +70°C/-4°F -- 158°FLCD backlight time : 60S (Default)Controller Terminals:#12 AWG(4mm2) ; Recommended Wire cable:#12 AWG(4mm2)Dimension:172*139*44mm ; weight :0.6 KGMPPT solar charge Controller 20Amp Tracer2210ANModel: Tracer2210ANRated charge and discharge current :20 AmpNominal system voltage:12V/24V DC auto workMax. PV input power: 260W charge for 12V battery system / 520W charge for 24V battery systemMax. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)Battery type : Lead-acid, Lithium and User-defined .( Sealed /GEL(AGM)/Flooded; LiFePO4/ Li[NiCoMn]O2 ; User ), (AGM battery setting same as GEL parameters, or more accurate parameters follow battery factory advice by User type )Battery voltage range : 8～32VMPP voltage range:V(BAT+2V)～72VGrounding : Common negativeTracking efficiency : ≥99.5% , Max. conversion efficiency :98%Working environment temperature : -25℃～+50℃(100% input and output)Temperature: -20°C -- +70°C/-4°F -- 158°FLCD backlight time : 60S (Default)Controller Terminals:#6 AWG(16mm2) ; Recommended Wire cable:#10 AWG(6mm2)Dimension:220*154*52mm ; weight :0.94 KGMPPT solar charge Controller 30Amp Tracer3210ANModel: Tracer3210ANRated charge and discharge current :30 AmpNominal system voltage:12V/24V DC auto workMax. PV input power: 390W charge for 12V battery system / 780W charge for 24V battery systemMax. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)Battery type :Lead-acid( Sealed /GEL(AGM)/Flooded);Lithium(LiFePO4/ Li[NiCoMn]O2 ); and User-defined . (AGM battery default setting same as GEL parameters, or more accurate parameters follow battery factory advice by User type )Battery voltage range : 8～32VMPP voltage range:V(BAT+2V)～72VGrounding : Common negativeTracking efficiency : ≥99.5% , Max. conversion efficiency :98%Working environment temperature : -25℃～+50℃(100% input and output)Temperature: -20°C -- +70°C/-4°F -- 158°FLCD backlight time : 60S (Default)Controller Terminals:#6 AWG(16mm2) ; Recommended Wire cable:#8 AWG(10mm2)Dimension:228*164*55mm ; weight :1.26 KGMPPT solar charge Controller 40Amp Tracer4210ANModel: Tracer4210ANRated charge and discharge current :40 AmpNominal system voltage:12V/24V DC auto workMax. PV input power: 520W charge for 12V battery system / 1040W charge for 24V battery systemMax. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)Battery type :Lead-acid, Lithium and User-defined .( Sealed /GEL(AGM)/Flooded; LiFePO4/ Li[NiCoMn]O2 ; User ), (AGM battery setting same as GEL parameters, or more accurate parameters follow battery factory advice by User type )Battery voltage range : 8～32VMPP voltage range:V(BAT+2V)～72VGrounding : Common negativeTracking efficiency : ≥99.5% , Max. conversion efficiency :98%Working environment temperature : -25℃～+50℃(100% input and output)Temperature: -20°C -- +70°C/-4°F -- 158°FLCD backlight time : 60S (Default)RS485 interface:5VDC/100mAController Terminals:#6 AWG(16mm2) ; Recommended Wire cable:#6 AWG(16mm2)Dimension:252*180*63mm ; weight :1.65 KG
