Electronic Single Axis Solar Tracking Controller + 12″ 6000N 12V Linear Actuator

Electronic Single Axis Solar Tracking Controller + 12″ 6000N 12V Linear Actuator

USD 129.99 USD

SKU: fSRHayyB

Brand: SZMWKJ

GTIN: 608651195955

Condition: New

Tags: 10% 12 V 2min/18min (Max) 300mm/12 Inch 4.5mm/s 4000N/400KG/880lbs 6000N/600KG/1320Lbs 608651195955 All Daylight Conditions China DC 12V DC Power Electricity Home/Garden Max 15A Max 180W NST6000N-300 NST6000N-400 Outdoor Solar Tracker Standard 1 Year SZMWKJ

Categories: Electrical Supplies

Specifications

Country Of Origin	China
Model	NST6000N-300
Warranty	Standard 1 Year
Linear Actuator Speed	4.5mm/s
Linear Actuator Stroke Length	300mm/12 Inch
Linear Actuator Max Push Load	6000N/600KG/1320Lbs
Linear Actuator Max Pull Load	4000N/400KG/880lbs
Duty Cycle	10%
Operating Frequency	2min/18min (Max)
Input Voltage	DC 12V
Type	Solar Tracker
Recommended Environment	Outdoor
Brand	SZMWKJ
Solar Technology	Solar Tracker
Application	Home/Garden
Current Rating	Max 15A
System Configuration	DC Power
Power Source	Electricity
Features	All Daylight Conditions
Power	Max 180W
Current Output	Max 15A
Voltage	12 V
UPC	608651195955

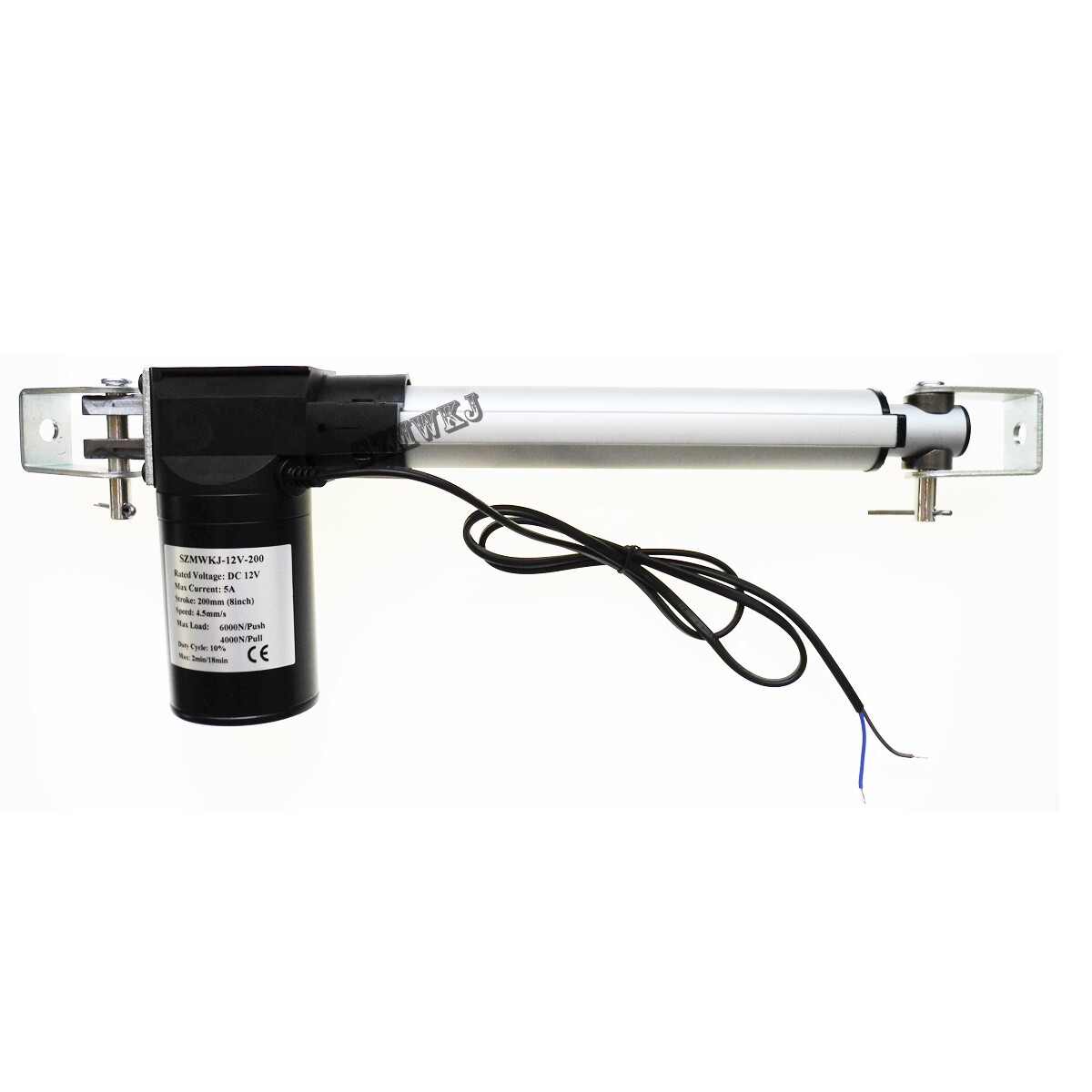

About the 6000N Linear Actuator ★ 1x 6000N 300mm 12" Stroke DC 12V Linear Actuator. With 6000N/600kg/1320lbs max lift linear actuator for large/high power solar panel system. ★ 2x Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuator.
