DC12V 8″ Linear Actuator &LCD Controller &Wind Sensor For Solar Tracking Tracker
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Output | 15A or Less |
| System Configuration | Does not apply |
| Solar Technology | Solar Tracking |
| Power Source | Electricity |
| Custom Bundle | Yes |
| Wattage | Does not apply |
| Maximum Flow Rate | Does not apply |
| Speed Of Linear Actuator | 5.7mm/s |
| MPN | Does Not Apply |
| Rotor Diameter | Does not apply |
| Item Length | Does not apply |
| Bundle Listing | Yes |
| Wire Gauge | Does not apply |
| Linear Actuator Max Pull Load | 1200N/120KG/264lbs |
| Voltage | 12 V |
| Connector Type | Does not apply |
| Axis Orientation | Horizontal |
| Features | All Daylight Conditions |
| Protection Properties | Does not apply |
| System Input Voltage | DC 12V |
| Cell Quantity | Does not apply |
| Pliability | Does not apply |
| Linear Actuator Max Push Load | 1500N/150KG/330lbs |
| Warranty | Standard 1 year |
| Maximum Input Power | Does not apply |
| Maximum Input Voltage | Does not apply |
| Inverter Technology | Does not apply |
| Color | Does not apply |
| Current Rating | Does not apply |
| Material | Does not apply |
| Brand | SZMWKJ |
| Type | Solar System/Kit |
| Connector Configuration | Does not apply |
| Model | NSTYW200 |
| Recommended Environment | Outdoor |
| Country/Region Of Manufacture | China |
| Charging Mode | Does not apply |
| Resistance Properties | Does not apply |
| Application | Home/Garden |
| Power | Does not apply |
| Product Line | Does not apply |

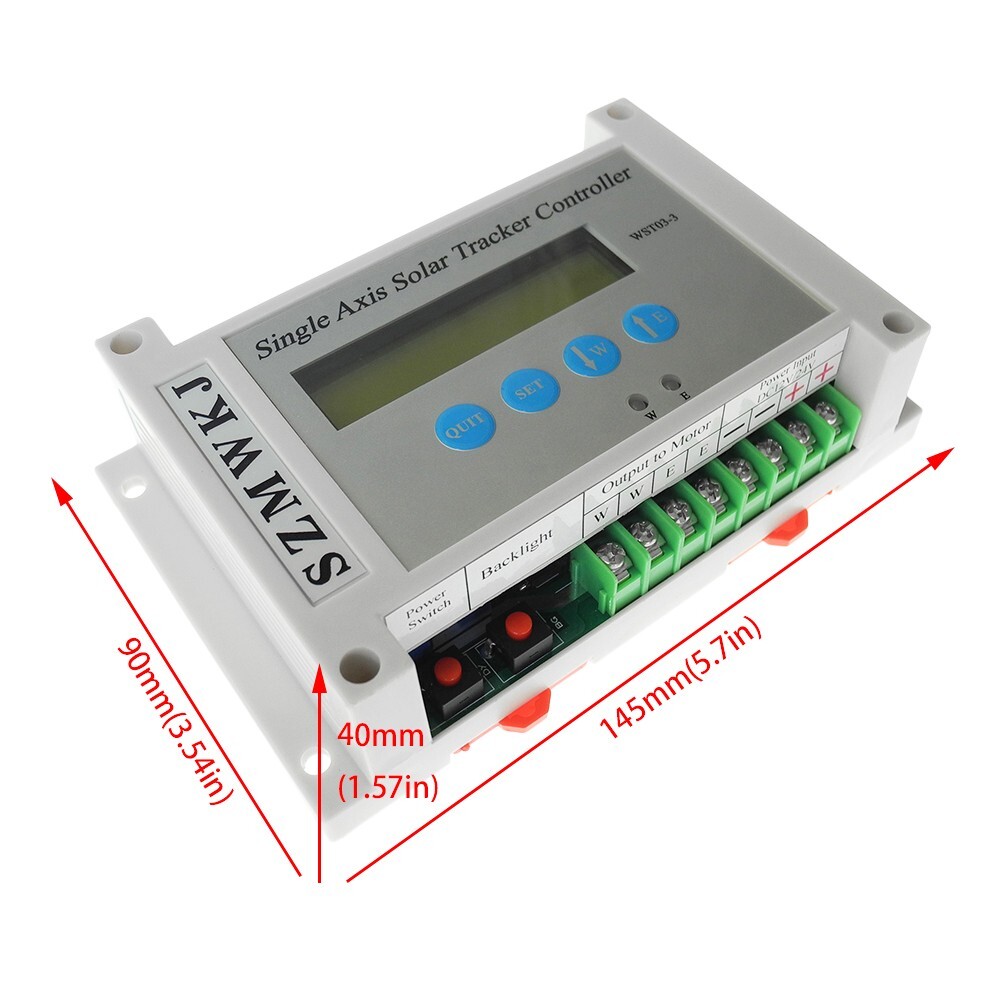

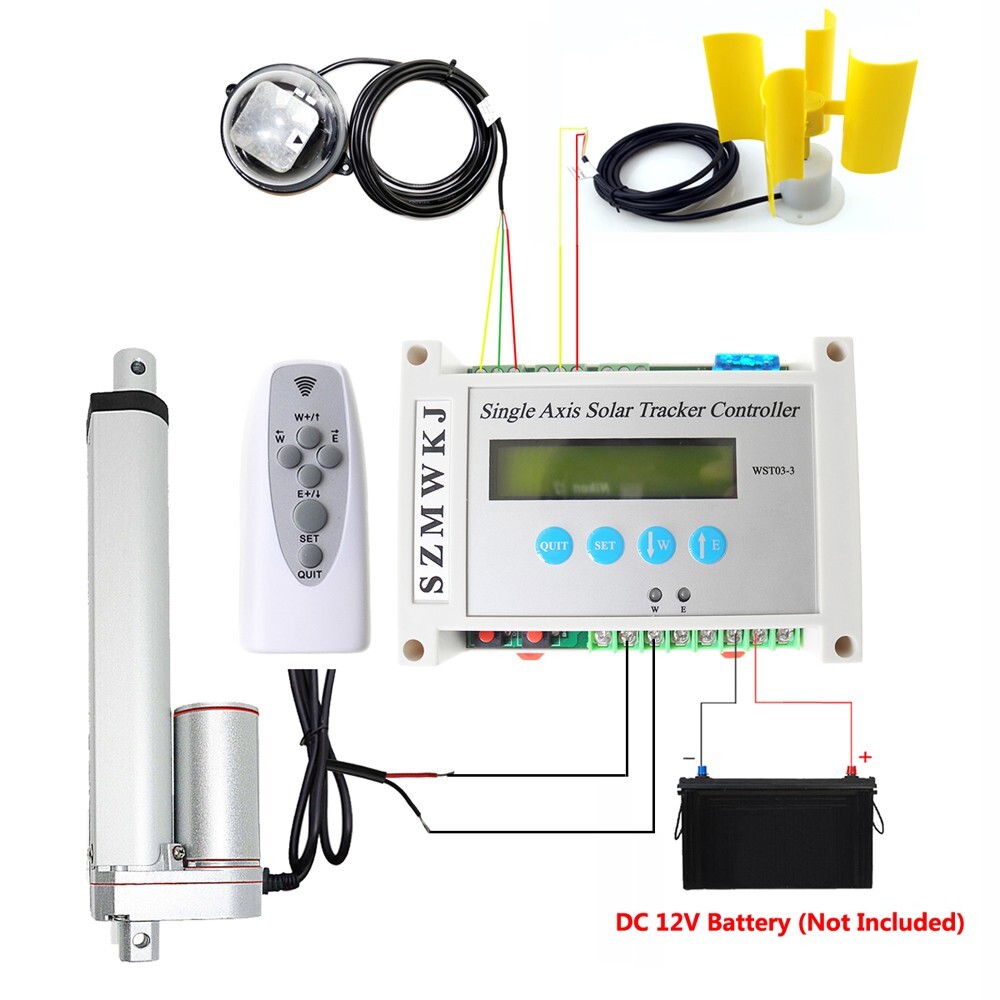

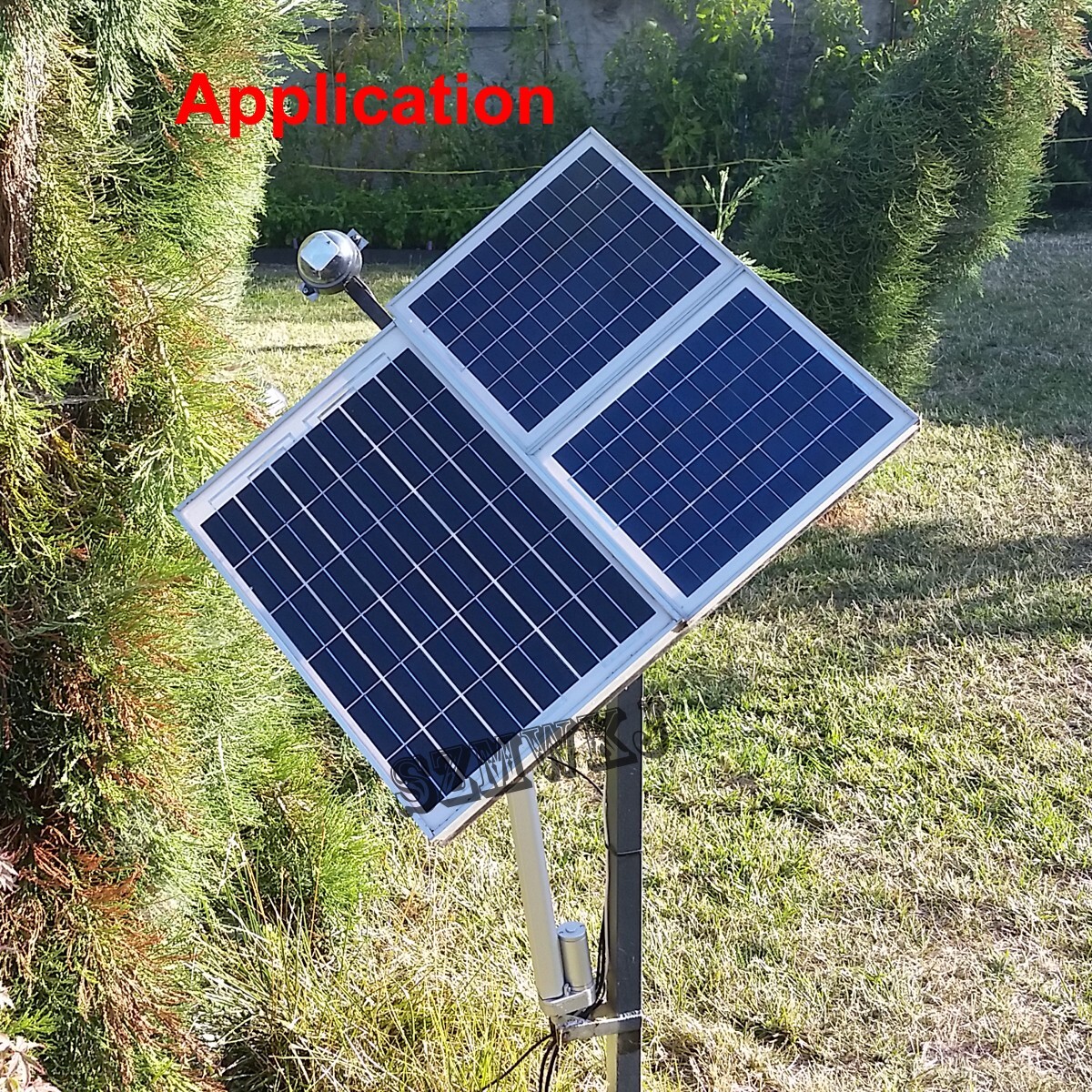

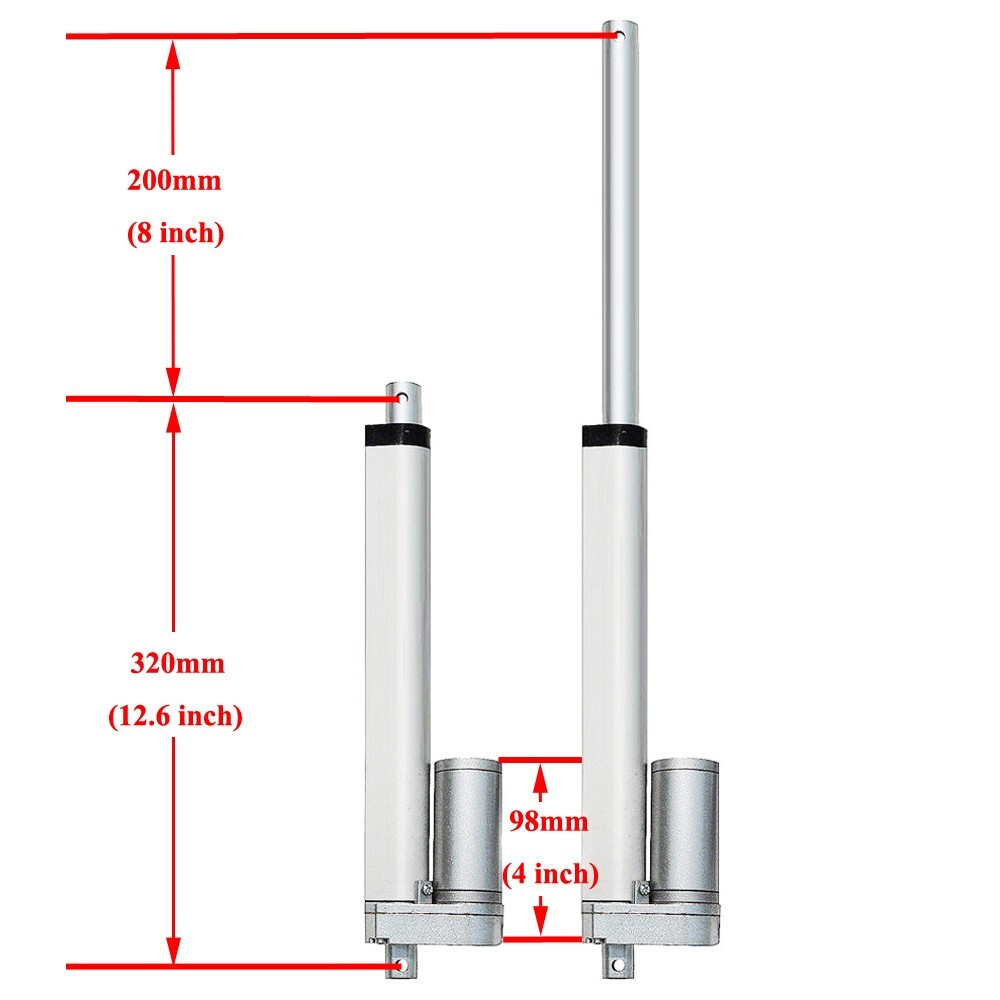

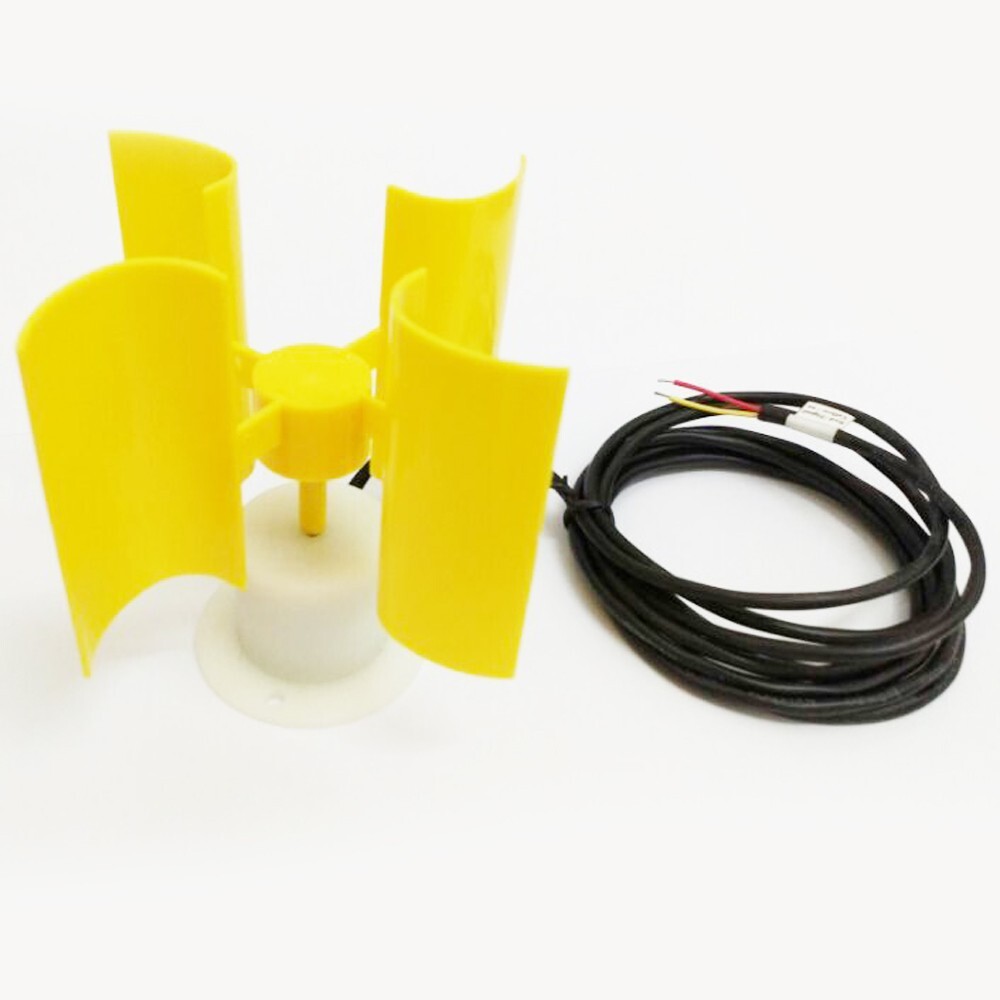

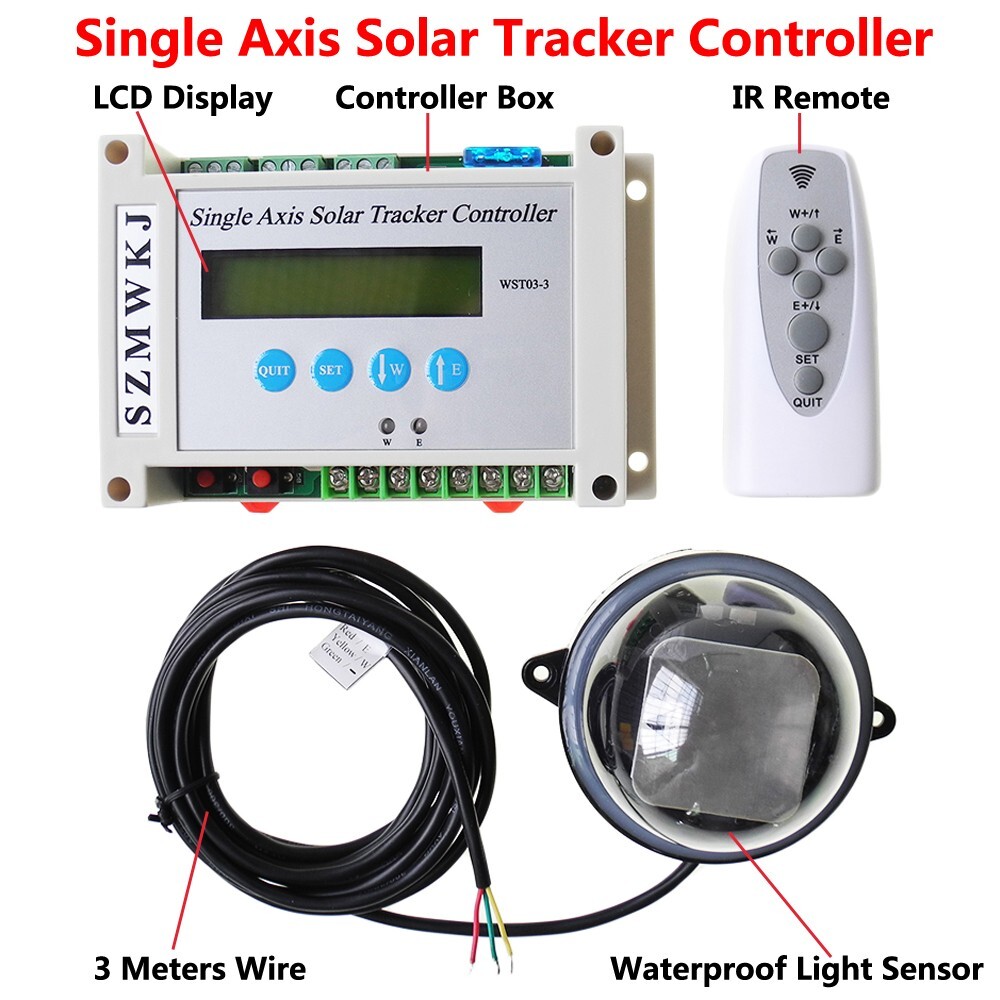

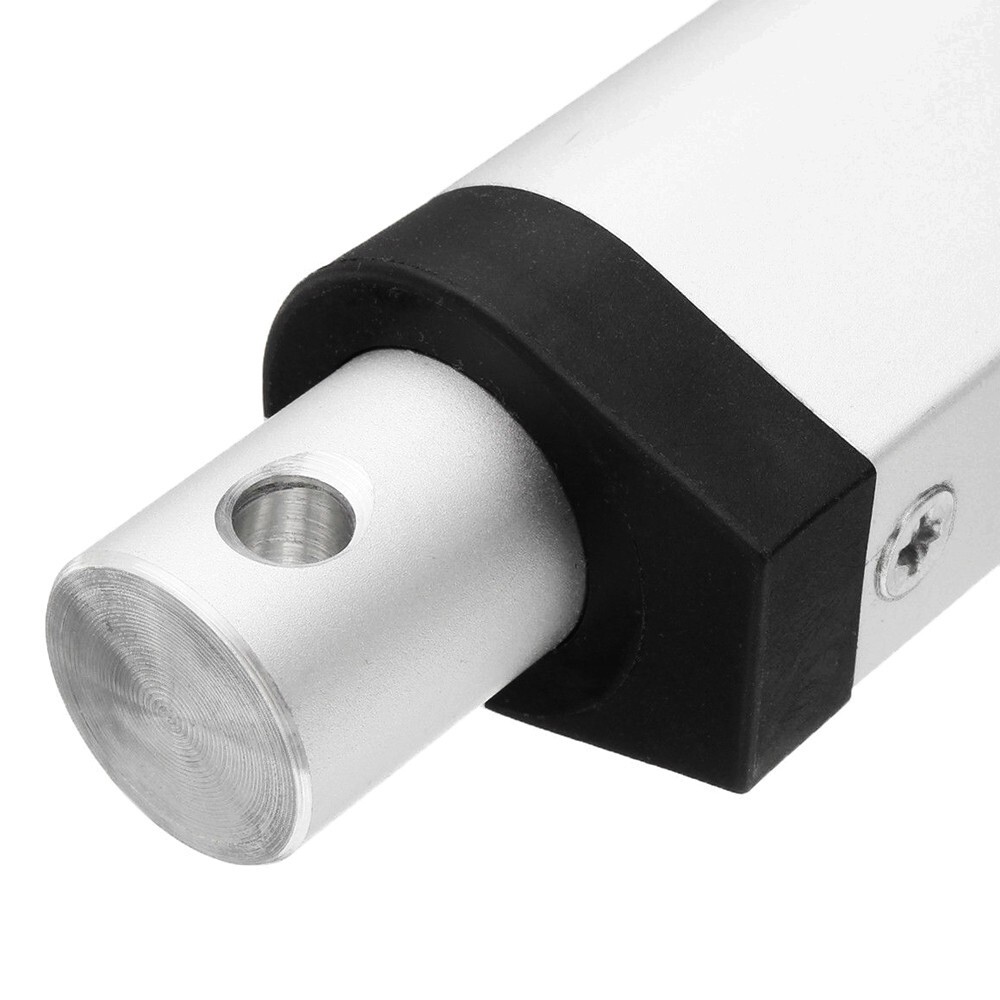

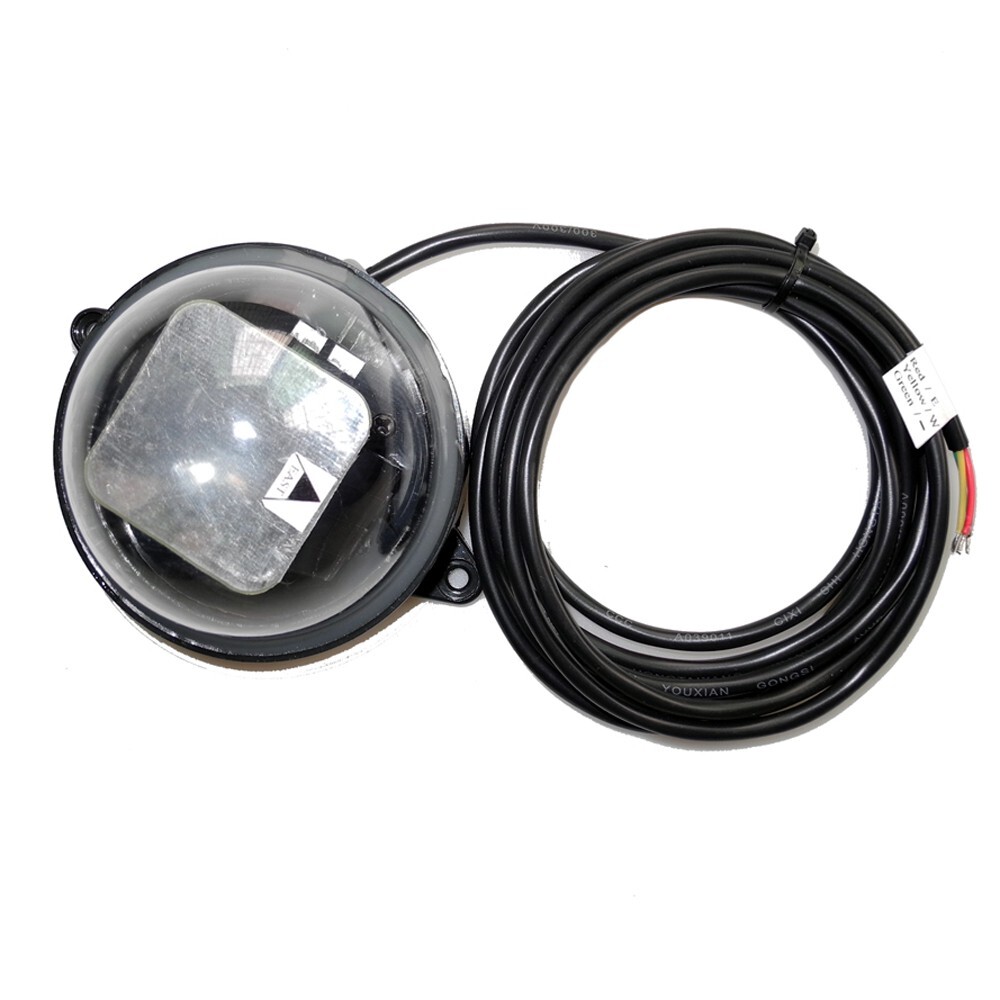

DescriptionDC12V 8" Linear Actuator &Controller &Wind Sensor For Solar Tracking Tracker Here for sale is Complete Single Axis Solar Tracker Kits, items Include a DC 12V 200mm/8" Linear Actuator &Mounting Brackets and the Electronic Controller and the Anemometer (Wind Speed Sensor) for a single axis solar tracker system. Build your own frame and you will get a professional grade single axis solar tracker! Package Included: ★ 1x 200mm 8" Stroke DC 12V 5.7mm/s Speed Linear Actuator. ★ 1x LCD Solar Tracking Controller +Light Sensor+IR Remote. ★ 1x Yellow Wind Speed Sensor +3Meters Cable.★ 2x Silver Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuator. Wiring Diagram: Note 1: The battery in the photo is only for reference and is not included in the package. Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 5A. Note 3: The Anemometer has only two wires, just connect the two wires and then it can work normally. Note 4: The Limit port on the controller is not necessary to use unless extra limit switch is needed. About the East-West Linear Actuator: For the Linear Actuator, we have 200mm/250mm/300mm/350mm/400mm/450mm Stroke for Option, Here for Sale is 200mm stroke, if you need other stroke, Pls Click Here Product NameLinear ActuatorCondition100% NewInput VoltageDC 12VStroke Length200mm/8"Retracted Length320mm/12.60"Extended Length520mm/20.47"Max Push Load1500N/150KG/330lbsMax Pull Load1200N/120kg/264lbsSpeed5.7mm/s (0.22"/s)Power Cord Length1.5Meters/59"Duty Cycle25%Operating Frequency20%MaterialAluminum AlloyColorSilver GreyOperation Temperature-26 ° C ~ +65 ° CProtection ClassIP54No-load Current< 0.5AMax load Current3ACertificationCEWarrantyStandard 1 yearBuilt-in Limit SwitchYesFor more details of the linear actuators, Pls Click Here About the Solar Tracker Controller: This is WST03-3 Single Axis Solar Tracker Controller, the main function is to control the single axis (oblique single axis)system to track the sunlight. Items include the LCD controller box, light sensor&3 meters wire and IR (infrared) remote.One of the advantage is that the light sensor is inside the waterproof shell which can extend the light sensor's lifespan. Another advantage is there is a sun-visor which can enlarge the detection angle range and thus increase the tracking accuracy. Specification:Product NameWST03-3 Solar Tracker ControllerBrandSZMWKJCondition100% NewController Box Dimension145x90x40mm (5.71"x3.54"x1.57")Input VoltageDC 12V/24V (DC 9V~35V)Max Load Current15AOperating Temperature-20℃ to +60℃Tracking Accuracy≤1° Features:1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed);2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging;3.With LCD display which can show multiple working modes and parameters;4.Many of the parameters can be set (Tracking accuracy, threshold value of the light sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...);5.With strong wind protection mode (Wind speed sensor is required);6.Can set the platform stay at any position at night (or cloudy day);7. Can connect limit switch;8.Can be operated by IR remote control or the buttons on the controller box;9.Reverse battery protection, over-current protection; standby current ≤15mA.For more details of the Single Axis Solar Tracker Controller, Pls Click Here About the Wind Speed Sensor: This is 12V/24V Wind Speed Sensor with 0-2.5V Voltage Signal Output , it comes with 4PCS Blades and 3 Meters Cable, This set wind speed sensor is in small size, convenient to carry and easy for installation. Wind Rank Wind Speed (m/s) Output Voltage ( V )10.3-1.60.02-0.121.6-3.40.1-0.233.4-5.50.2-0.445.5-8.00.4-0.658.0-10.80.6-0.8610.8-13.90.8-1713.9-17.21-1.3817.2-20.81.3-1.6920.8-24.51.6-1.91024.5-28.51.9-2.21128.5-32.62.2-2.5 Product Highlights of the Solar Tracker System: * Standard 1 year warranty* Free-maintenance.* Easy-installation.* Single axis tracker provides up to 35% more power production* Engineered to hold up to 1000 Watts of solar panels* Waterproof with IP54* Small self–consumption. Caution: * The Input Voltage for the whole system should be DC 12V.* Never approach a solar tracker while the Solar Tracker electronics are “on”.* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.* Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker. Application: Solar tracking system: Solar photovoltaic System, solar thermal system,etc. Payment* We accept PayPal only. * All major credit cards are accepted through secure payment processor PayPal. * Payment must be received within 7 business days of auction closing. * Please make sure your paypal and ebay address is correct. Or not, please correct it before payment. Shipping* This item will be shipped out within the Stated Handling Time after confirmed payment received. * Goods in stock in USA, buyer can get the parcel around 3-5 business days. * We provide tracking number freely for all buyers. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items.
