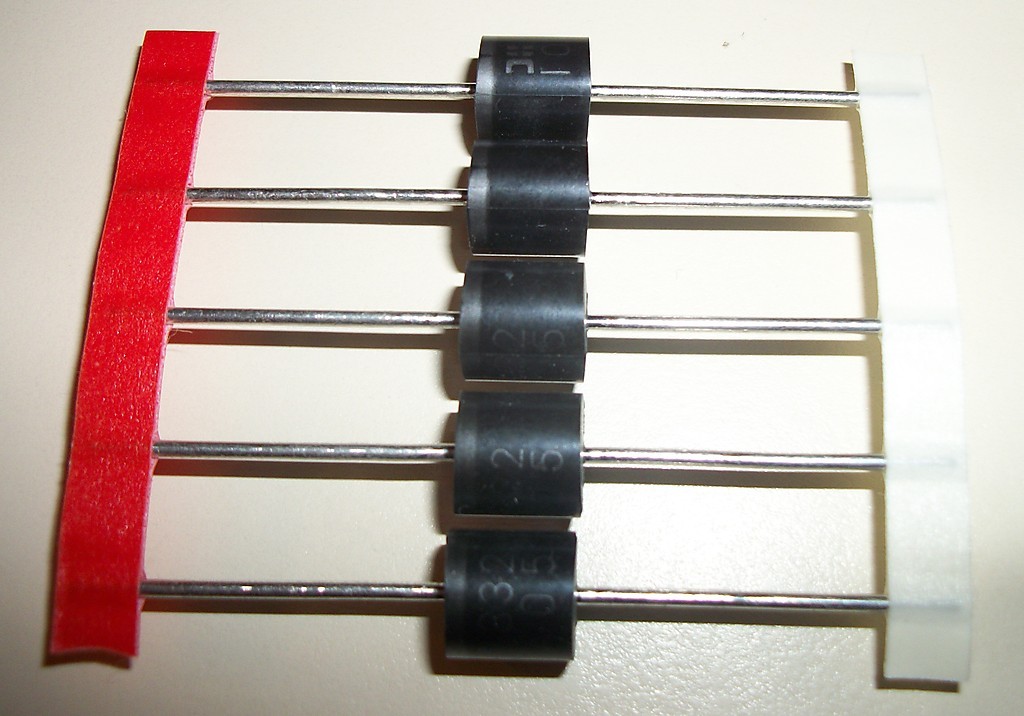

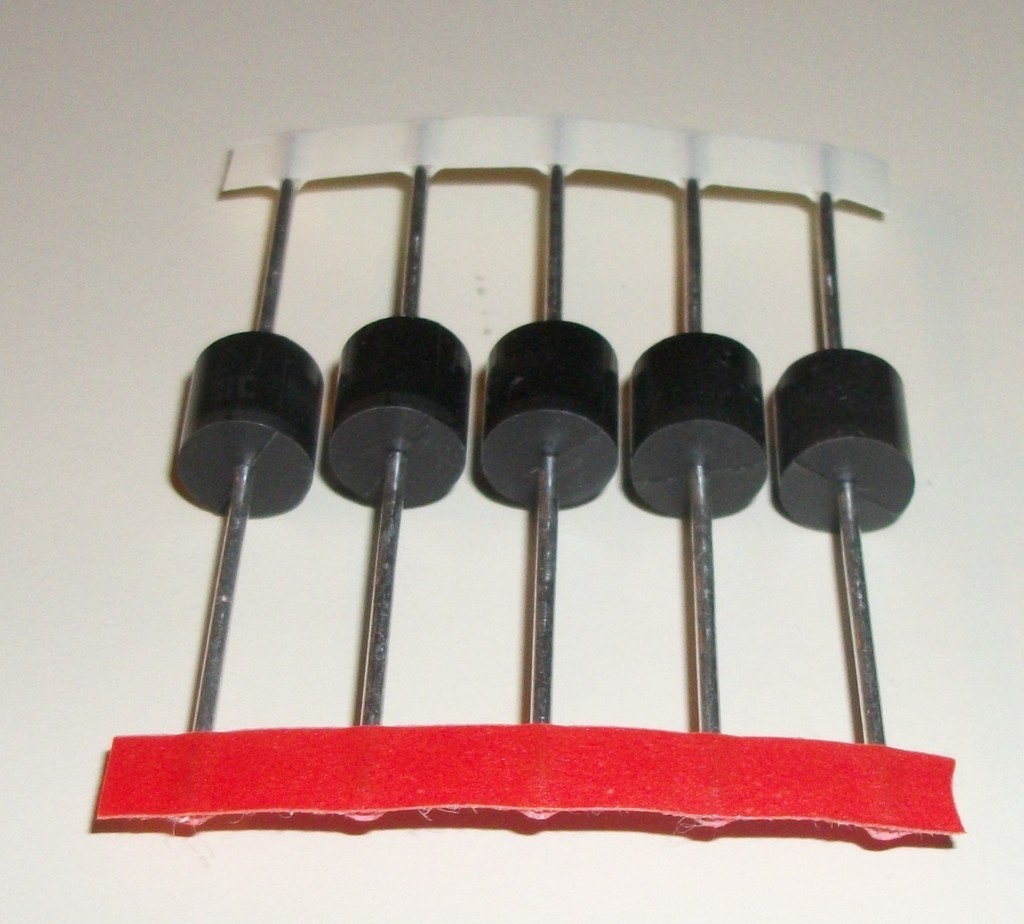

5 pcs of 10A 600V Diodes for Solar Cells Panel 10A05
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Diodes Incorporated |
10 Amps, 600 Vdc, 5 pcs, Brand New. Low Forward Voltage, 0.95V (typical) @ 10A, 25 deg. C, lower at higher temperature. The diodes will work with any solar panel, however, the primary application of this diode is for use with high voltage solar panel. For low voltage applications (and more net power), please checkout my Schottky diodes which have much lower voltage drop, 0.55V typical. Axial Power Rectifier, P/N 10A05. Shipping US only, also offer other diodes. Accepting PayPal for payment. Check out my other items. Features: High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 600A Peak Low Reverse Leakage Current For Use in Medium Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications These are Pb−Free Devices Case: Molded Epoxy, R6 Finish: All External Surfaces Corrosion Resistant Leads are Readily Solderable Polarity: Cathode indicated by Polarity Band Blocking diodes in photovoltaic systems serve two functions. They can prevent batteries from draining at night, and can isolate damaged or under-performing solar cells. The latter can be solved with either a blocking or a bypassing diode. Function A diode is a semiconductor device, a one-way valve for electricity. Diodes are rated in the maximum current they can pass through while on and the maximum voltage they can block when off. When the correct conditions are met, the diode will stop current from flowing. Shaded Panels Solar Panels contain multiple solar cells wired together in series. If part of the panel is shaded, all of the cells become less efficient. Bypass Diodes A blocking diode in the panel "averages out" any shaded cells. The diode allows the loss of voltage from a shaded cell to be shared among the others, so that the panel functions more normally. Battery Drain At night, dusk and dawn, the battery outputs a higher voltage than the solar cells do. Without a blocking diode, the battery will send power to the panels instead of the other way round. Over time, this will drain the batteries. Blocking Diodes When the battery voltage is higher than that of the solar panel, a blocking diode shuts off flow. During the day, the blocking diode can also prevent drain from the battery caused by damaged cells. In a function similar to bypass diodes, the bad cells are isolated from the others.
