12V 24V DC Single/Dual Axis Solar Tracking Tracker Controller W/ Relay Module CL
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Rating | Does not apply |
| Country/Region Of Manufacture | China |
| System Configuration | Does not apply |
| Power Source | Electricity |
| Features | Does not apply |
| MPN | Does Not Apply |
| Power | Does not apply |
| Current Output | Does not apply |
| Brand | SZMWKJ |
| Solar Technology | Solar Tracking |
| Application | Home/Garden |
| Charging Mode | Does not apply |
| Resistance Properties | Does not apply |
| Voltage | 12V/24V |

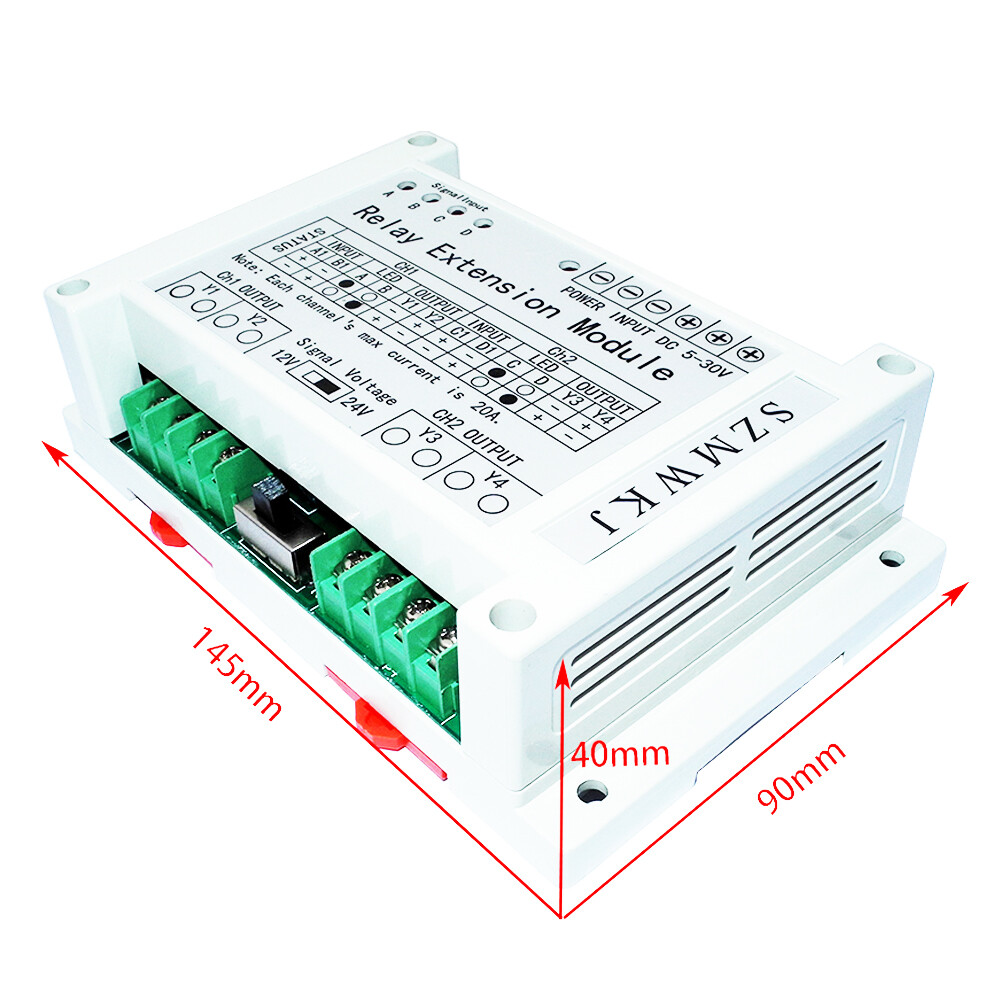

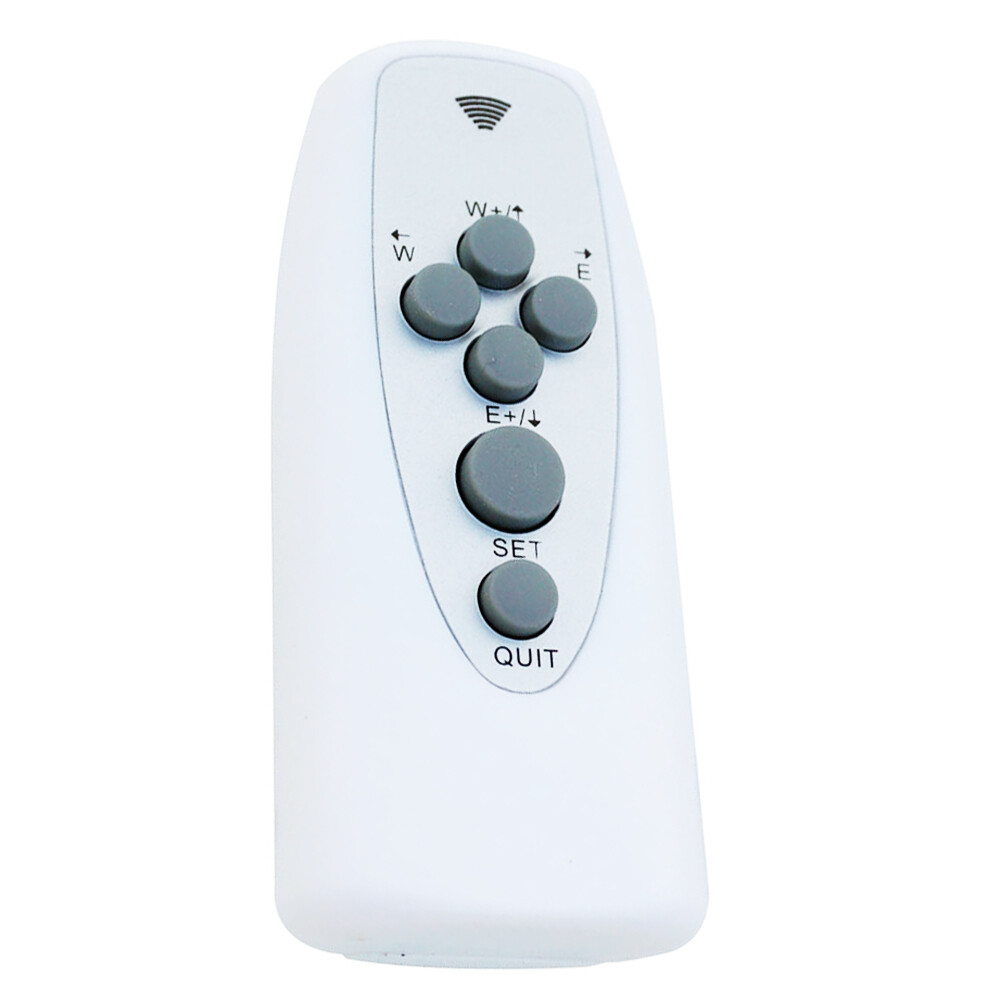

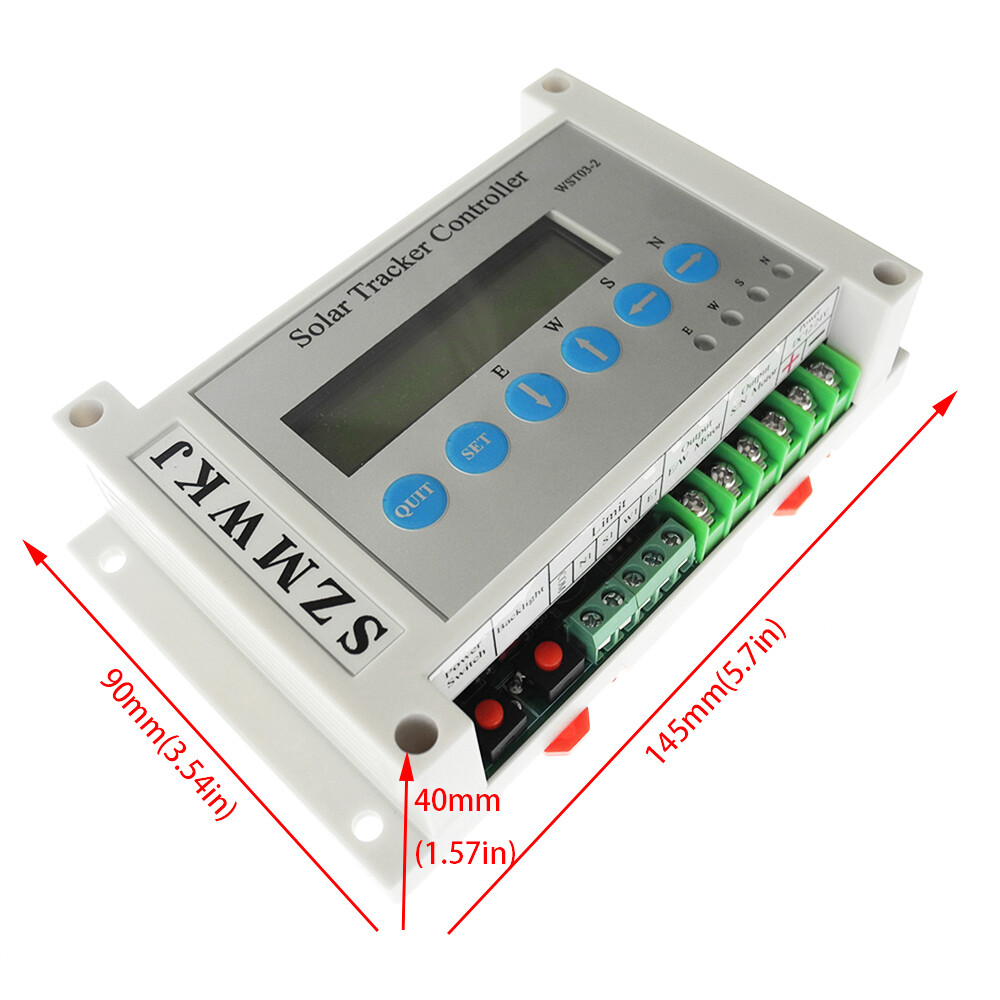

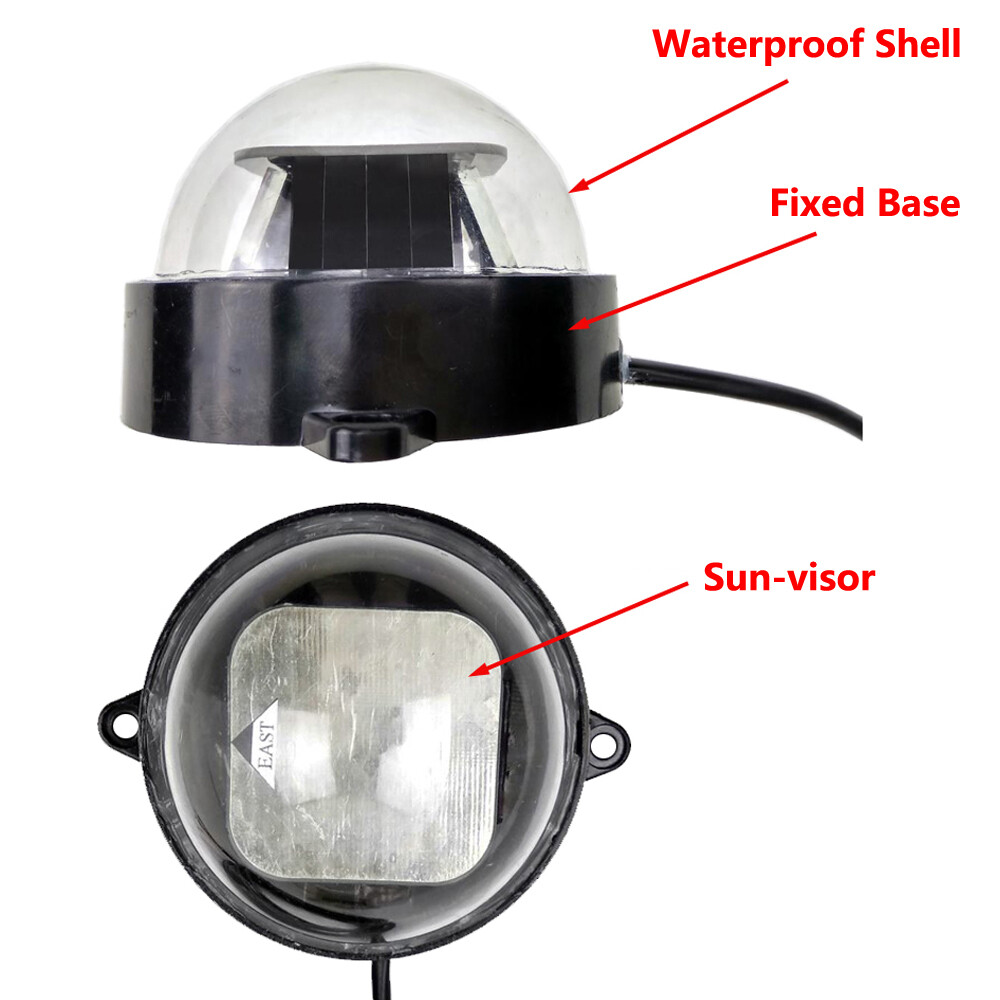

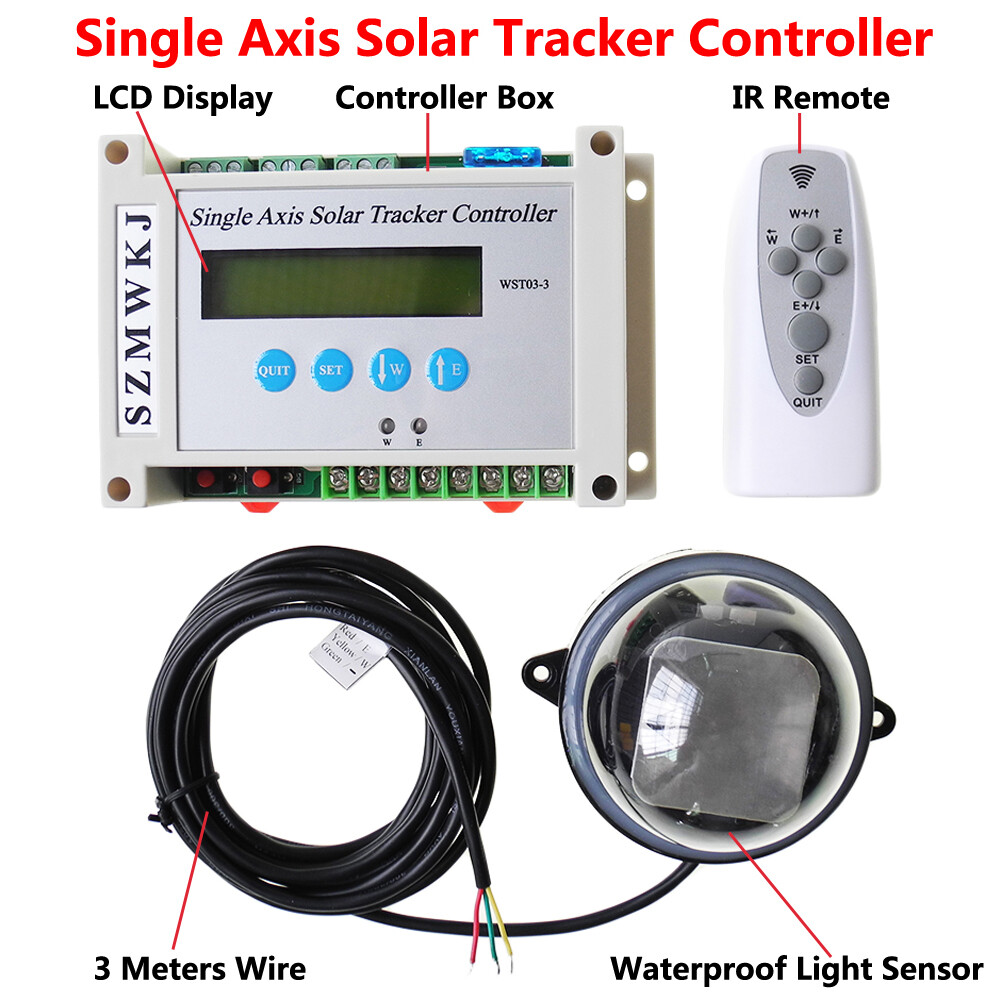

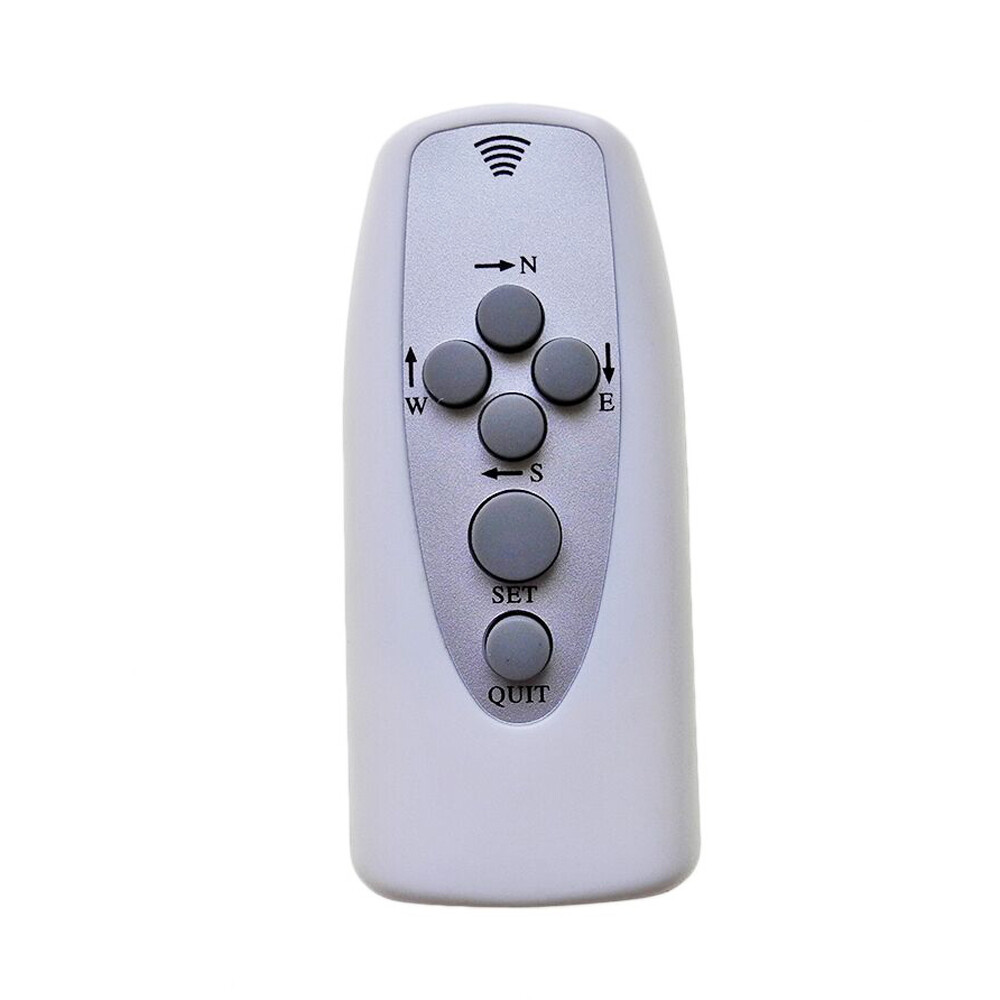

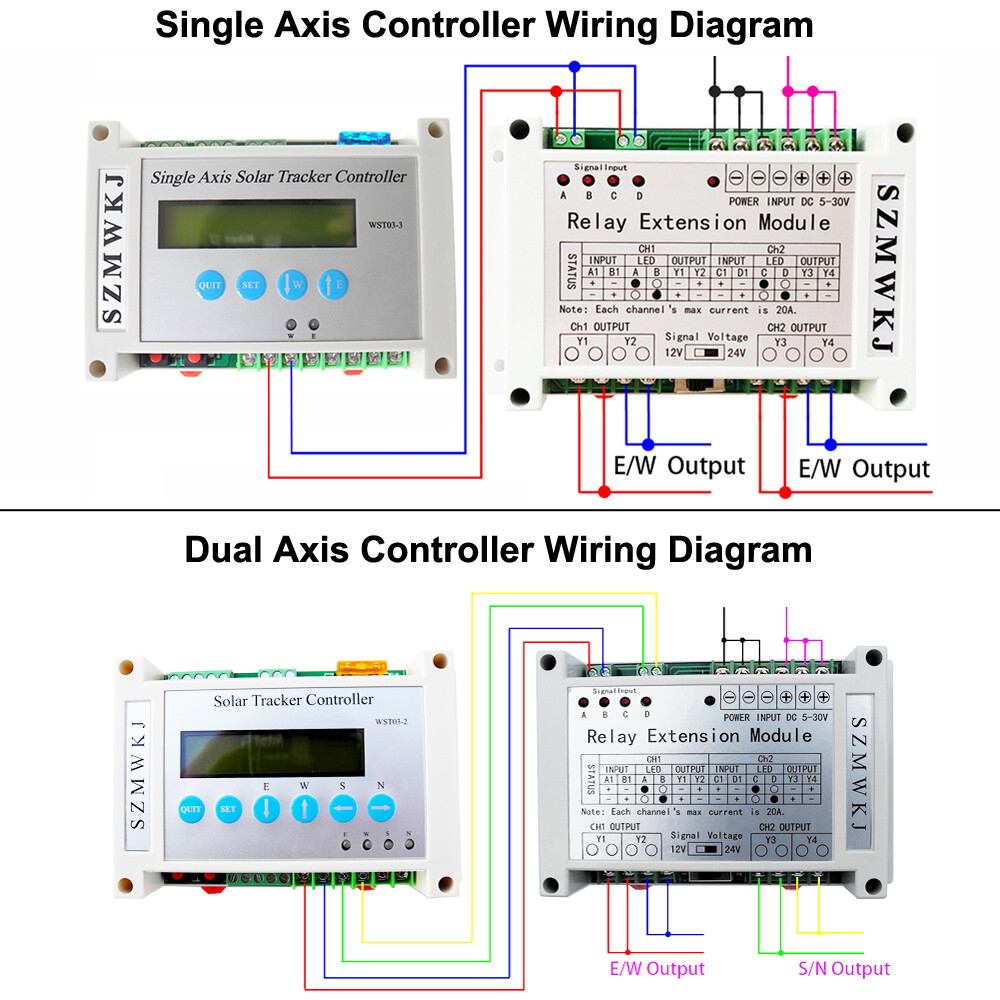

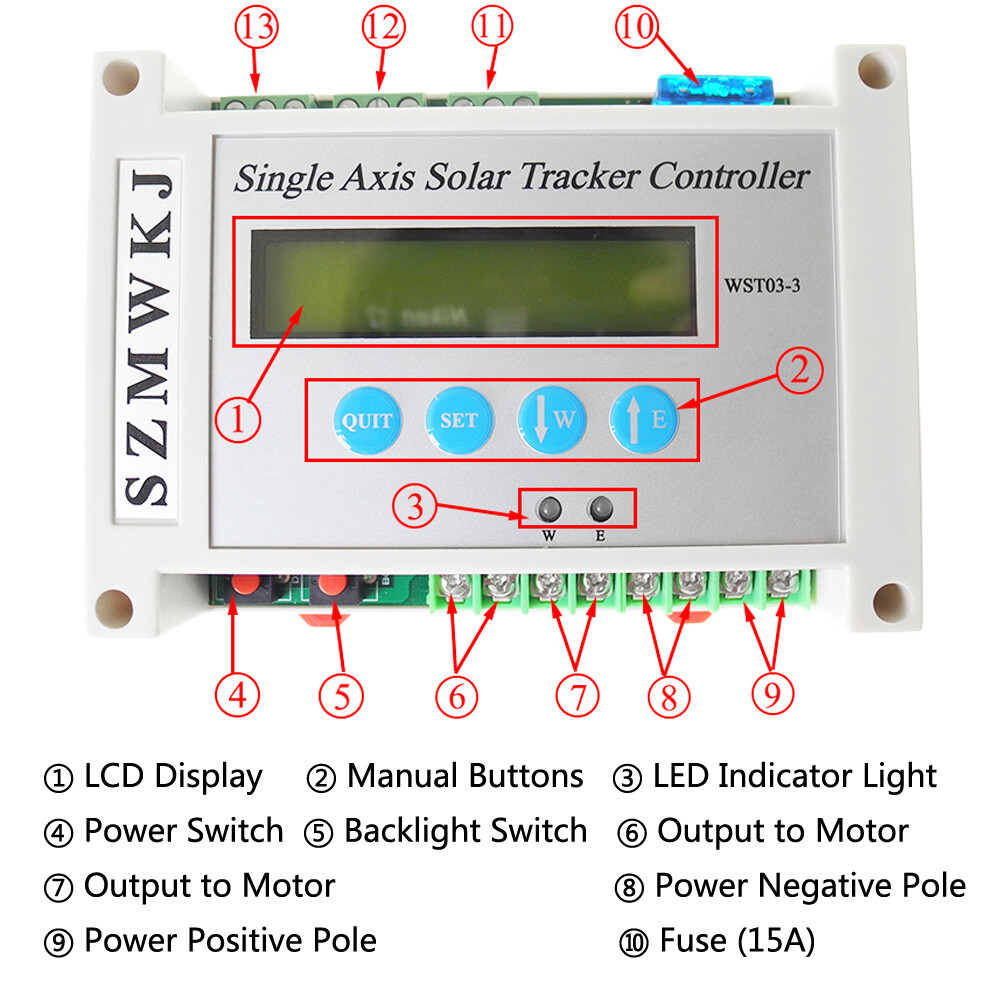

12V 24V DC Single/Dual Axis Solar Tracking Tracker Controller W/ Relay Module 12V 24V DC Single/Dual Axis Solar Tracking Tracker Controller W/ Relay Module Package Included Optional A: Only 1PCS Single Axis Solar Tracker Controller（Controller Box+Light Sensor+IR Remote). Optional B: Only 1PCS Dual Axis Solar Tracker Controller（Controller Box+Light Sensor+IR Remote). Optional C: Only 1PCS Relay Extension Module. Optional D: Single Axis Solar Tracker Controller+Relay Extension Module. Optional E: Dual Axis Solar Tracker Controller+Relay Extension Module. Notes: Pls check each mode carefully and choose the right mode as you need! Single Axis Solar Tracker Controller Specification:Product NameWST03-3 Solar Tracker ControllerBrandSZMWKJCondition100% NewController Box Dimension145x90x40mm (5.71"x3.54"x1.57")Input VoltageDC 12V/24V (DC 9V~35V)Max Load Current15AOperating Temperature-20℃ to +60℃Tracking Accuracy≤1° Features:1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed);2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging;3.With LCD display which can show multiple working modes and parameters;4.Many of the parameters can be set (Tracking accuracy, threshold value of the light sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...);5.With strong wind protection mode (Wind speed sensor is required);6.Can set the platform stay at any position at night (or cloudy day);7. Can connect limit switch;8.Can be operated by IR remote control or the buttons on the controller box;9.Reverse battery protection, over-current protection; standby current ≤15mA. Dual Axis Solar Tracker Controller Specification:Product NameWST03-2 Solar Tracker ControllerBrandSZMWKJCondition100% NewController Box Dimension145x90x40mm (5.71"x3.54"x1.57")Input VoltageDC 12V/24V (DC 9V~35V)Max Load Current10AOperating Temperature-20℃ to +60℃Tracking Accuracy≤1° Features:1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed);2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging;3.With LCD display which can show multiple working modes and parameters;4.Many of the parameters can be set (Tracking accuracy, threshold value of the light-sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...);5.With strong wind protection mode (Wind speed sensor is required);6.Can set the platform stay at any position at night (or cloudy day);7. Can connect limit switch;8.Can be operated by IR remote control or the buttons on the controller box;9.Reverse battery protection, over-current protection; standby current ≤15mA. Relay Extension Module This relay module is a kind of power switch module which can be used for DC 5-30V system. It mainly contains 4-way relay and protection device. It can control two-way DC brush motors to finish positive inversion movement; It can also synchronously control two-way DC loads or time-sharing control four-way DC loads. Technical Parameters Condition: 100% Brand New Product Name: Relay Extension Module Relay Coil Voltage: DC 12V/24V Load Voltage: DC 5-30V Each Channel Max Current: 20A Operating Temperature: -20℃ ~ 60 ℃ Protection Class: IP52 Dimension: 145*90*41mm (5.71*3.54*1.61inch) Net Weight: 275g About Shipping: * This item will be shipped out within 1-3 Business Days after confirmed payment received. * We provide tracking number freely for all buyers. * We ship via Standard Delivery from China which usually takes 8-12 working days to United States. * For other countries, we normally ship by China Post/Singapore Post which takes about 25-40 business days. Please make sure you accept the shipping time before you make purchase. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items. * Any potential customs tax fee applied to the parcel should be covered by the buyer.
