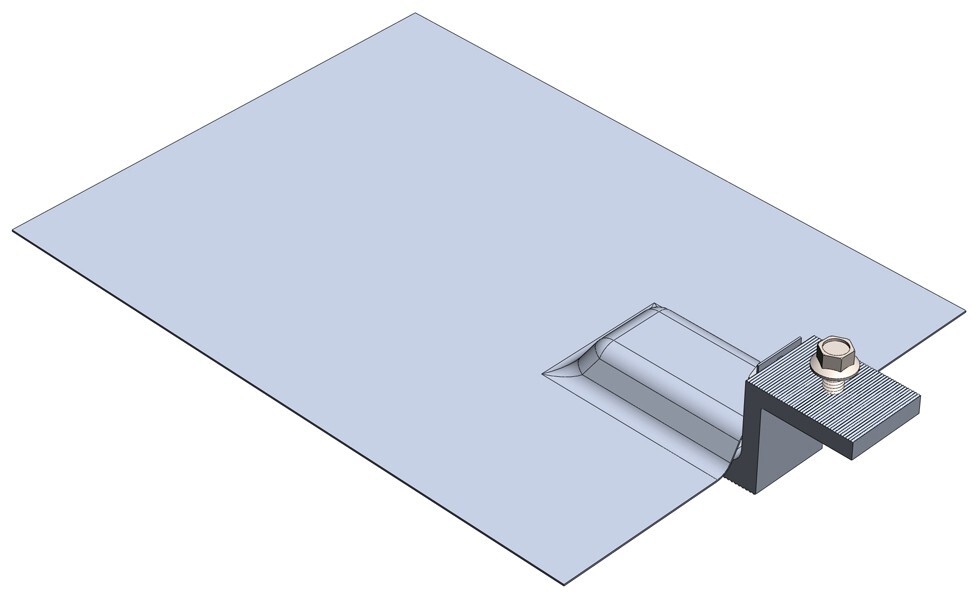

10 Top-Mount Silver Magerack Z Brackets Foot Feet & Flashing Solar Mounting Rack

Specifications

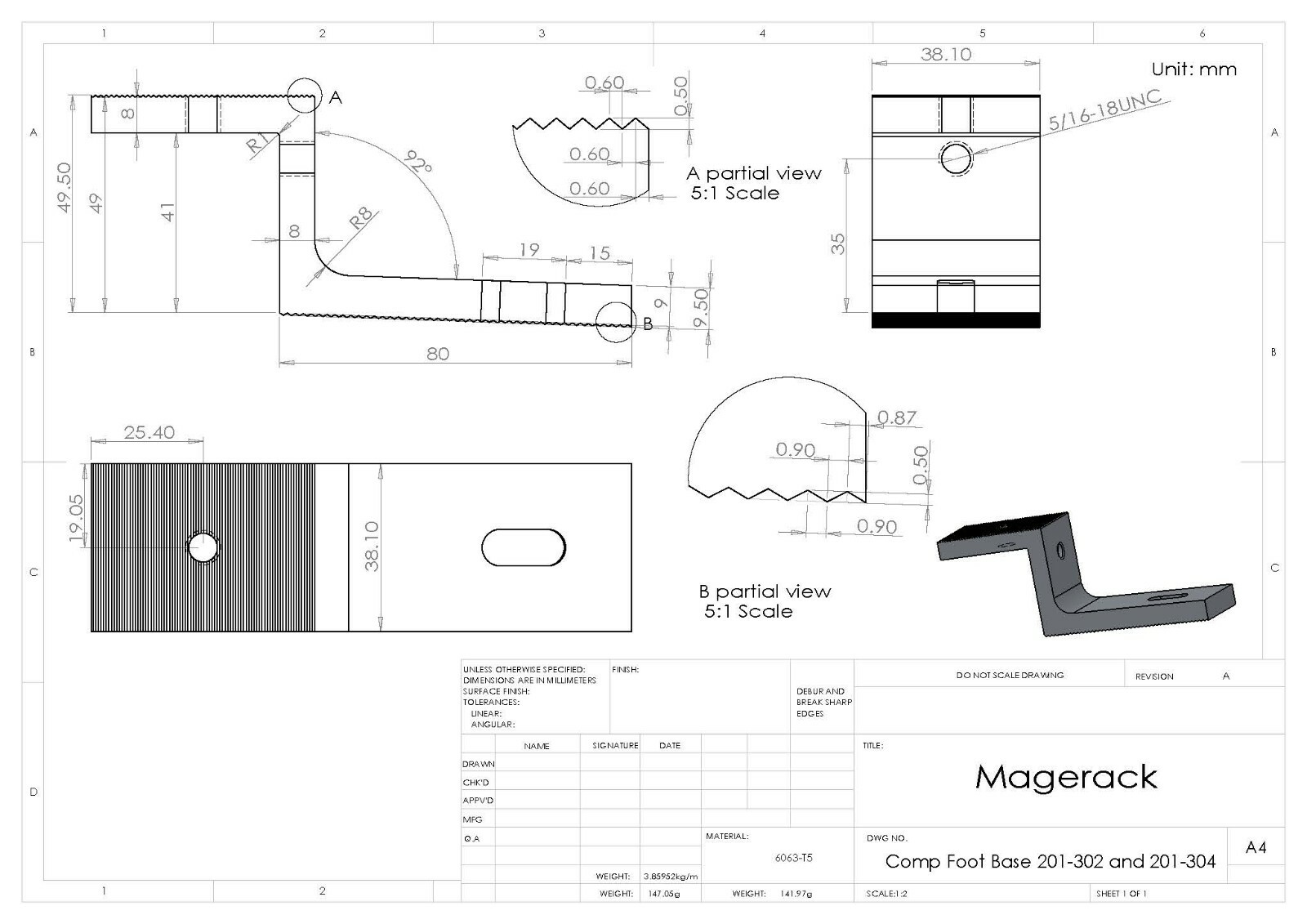

Magerack Top-Mount Silver Z Brackets with Silver Flashing can be used for solar installation and other applications on sloped residential composition shingle roof.Patented flashing design, absolutely waterproofingExtremely easy to install at lowest cost571 lbs uplift and 536 lbs downforceSilver L-foot Z bracket is made of aluminum alloy 6061-T6 and flashing is made of aluminum sheet 3003 H14 for outdoor use.Z bracket is 2" tall, 1-1/2" wide and 4.8" long (deep)The top flat platform includes one 5/16 x 3/4" or 1" flange bolt. The bottom slot is for 5/16" lag screw.Each order includes 10 sets of silver Z bracket with silver flashing. Each set includes one silver Z Bracket with flange bolts and one silver flashing. Flashings is 0.8 mm thick.

Related Items

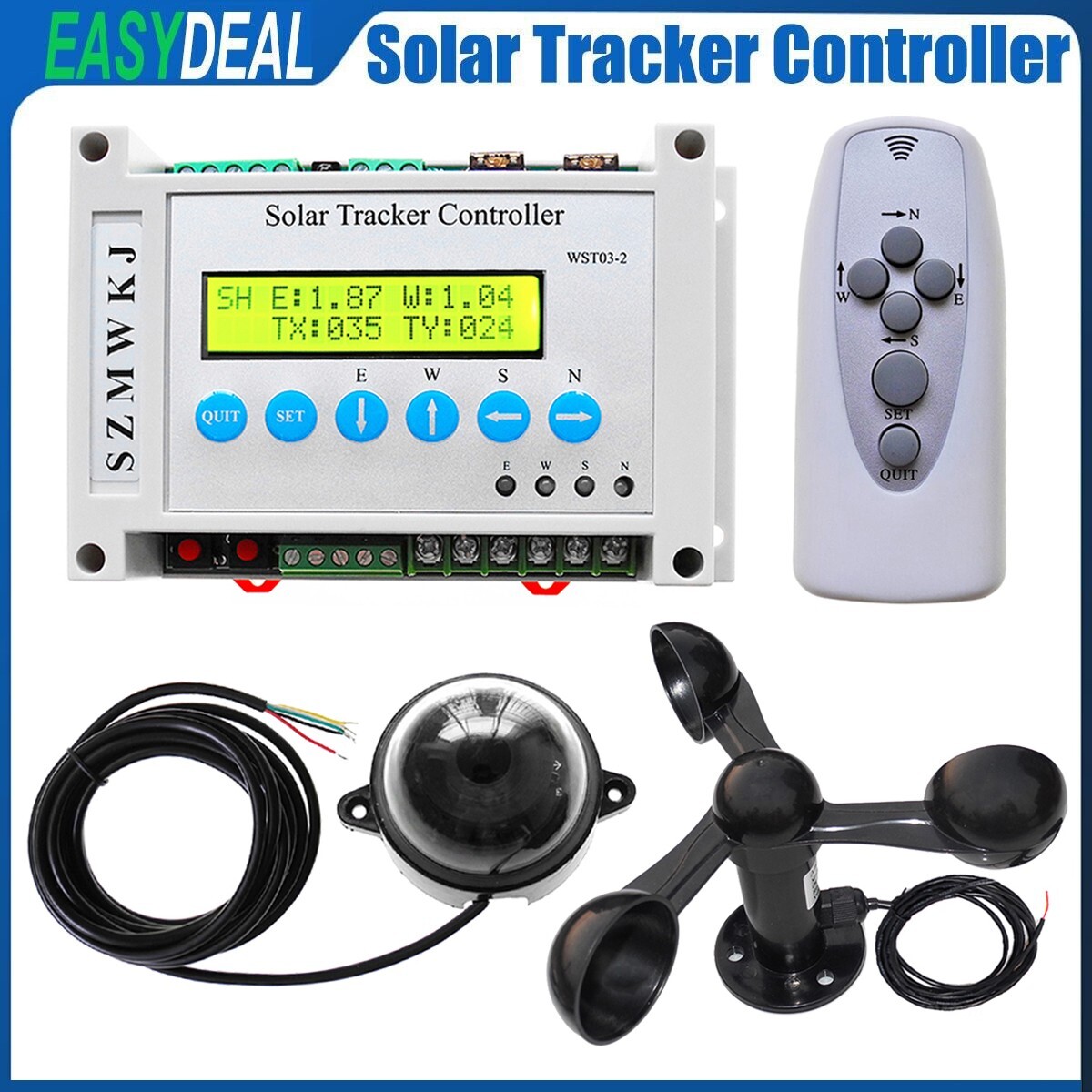

Electronic LCD Solar Tracker Controller &Wind Sensor for Solar Panel Tracking EL

Zep SolarEdge Technology Rail Clamp Bracket Spanner Bar 40mm with stainless bolt

300W Flexible Solar Panel Kit Battery Charger 12V For Car Camping Boat RV Marine

3000mAh 6V-12V Solar Panel Kit Rechargeable For Hunting Camera Trail Camera H9K7

PV Solar System Install Label Kit 48 Pack NEC 2017 2020 Safety Labels Electric

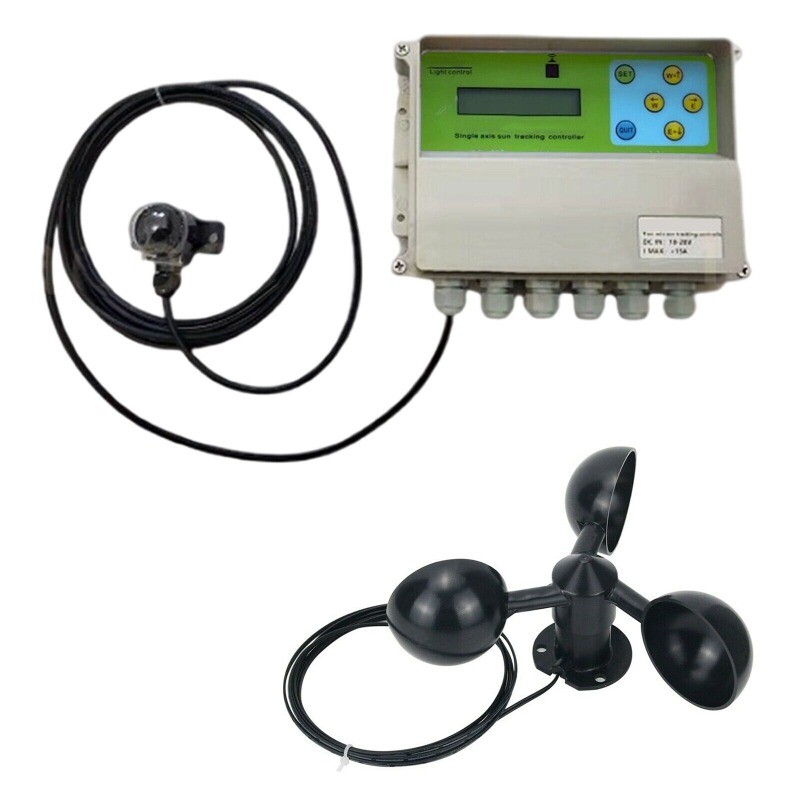

Dual Axis Solar Tracker Controller Automatic Solar Tracking Remote Control USA
